16 Decorative > The Hotel Range
61080/W/W

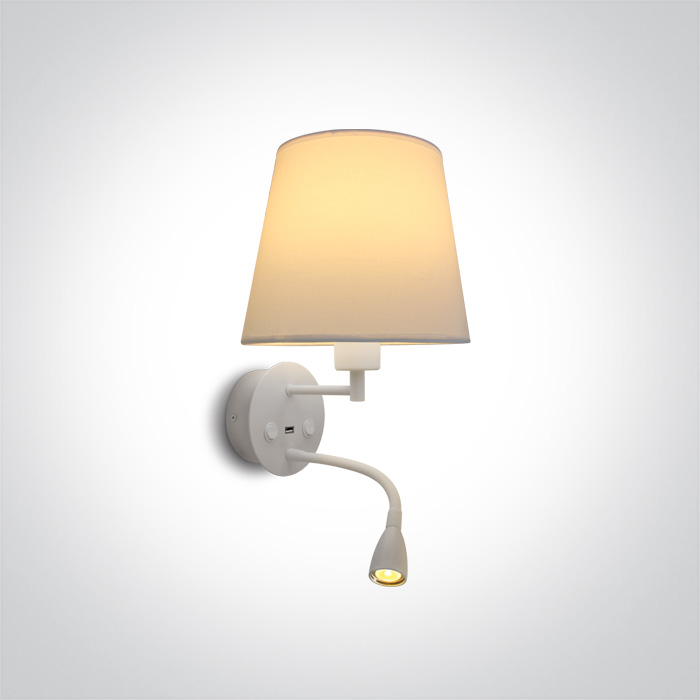

E27 Wall Hotel Range fitting with White fabric shade and 3W LED, IP20.
Complete with 700mA driver
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver
Complies with standard EN60598-1 and any other specific standards.

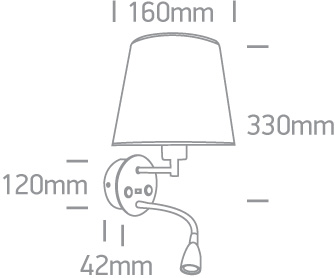

Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
The Hotel Range
Order Code
61080/W/W
Colour
White
Material
Metal
Diffuser Material
Fabric
Shape
Circular
Height
330mm
Diameter
160mm
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W LED + 40W E27
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
E27
Number of Lamps
1
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
4
Power (Watts)
2,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Samsung
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2,1-4,2W
Power Factor
0,5
Constant Current
Yes
700mA
3-6V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
50lm/W
Illumination Diagram
Packing Info
Box Weight
1.600kg
Pcs/Carton
4
Barcode
5291889061991
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
