17 Hotel & Bedroom > The Hotel Range
61122/C/W

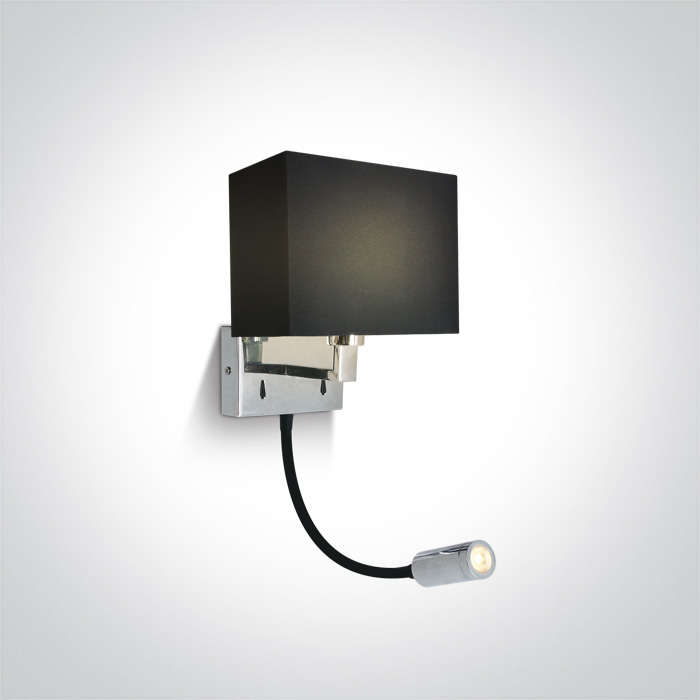

E14 Wall Hotel Range fitting with Black fabric shade and 3W LED, IP20.
Complete with 500mA driver
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
17 Hotel & Bedroom
Family
The Hotel Range
Order Code
61122/C/W
Colour
Chrome
Material
Metal
Diffuser Material
Fabric
Shape
Rectangular
Length
170mm
Width
135mm
Height
300mm
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W LED + 8W E14
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
E14
Number of Lamps
1
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
2,9V
Power (Watts)
1,45W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-2W
Power Factor
0,5
Constant Current
Yes
500mA
2-4V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
50lm/W
Illumination Diagram
Packing Info
Box Weight
1.150kg
Pcs/Carton
4
Barcode
5291889069546
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
