14 Plafo > Square LED Plafo Steel
62104/MC

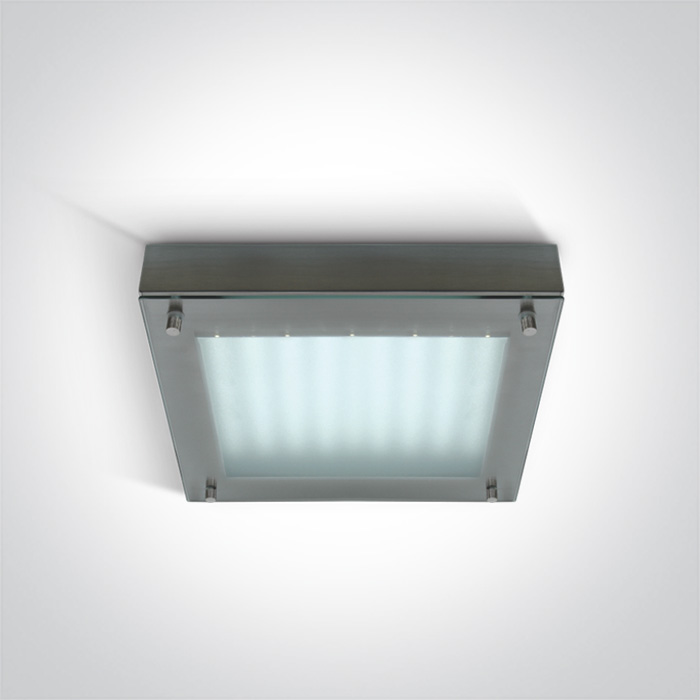

30W SMD LED steel square LED Plafo.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

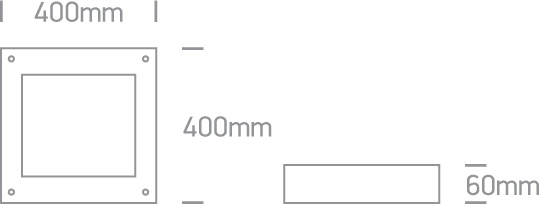

Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
Square LED Plafo Steel
Order Code
62104/MC
Colour
Brushed Chrome
Material
Steel
Diffuser Material
Glass
Shape
Rectangular
Length
400mm
Width
400mm
Height
60mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
40V
Safety Class
Power (Watts)
28W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
LED Number
144
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
17,5-29,4W
Power Factor
0,9
Constant Current
Yes
700mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Illumination Diagram
Packing Info
Box Length
45cm
Box Width
43cm
Box Height
12cm
Box Weight
5.130kg
Pcs/Carton
4
Barcode
5291889017196
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
