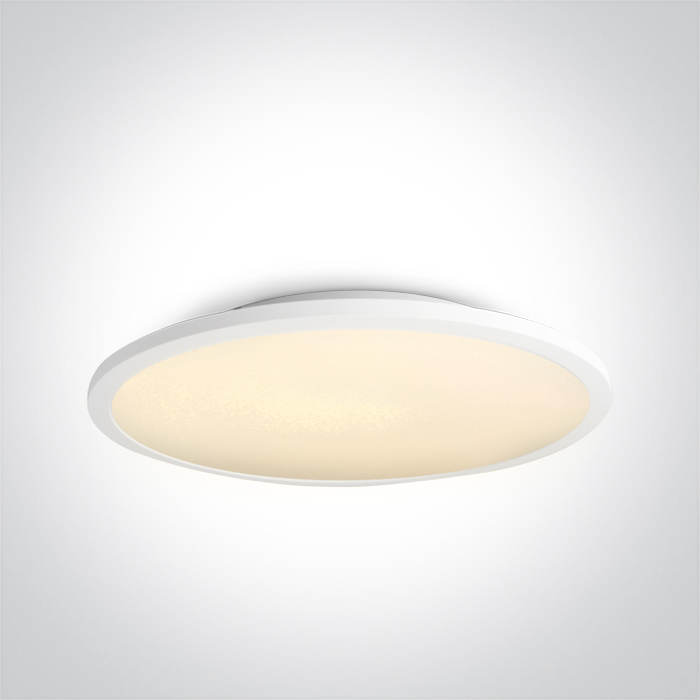

14 Plafo > The Ultra Slim LED Plafo Aluminium
62140FB/W/W
40W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
The Ultra Slim LED Plafo Aluminium
Order Code
62140FB/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
43mm
Diameter
395mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
39V
Safety Class
Power (Watts)
39W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Fast Connector
Other
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
25-42W
Power Factor
0,9
Constant Current
Yes
1000mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
40°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
Other
Illumination Data
Colour Temperature
3000K
Lumen Output
3500lm
Light Efficiency
87,5lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.050kg
Pcs/Carton
4
Barcode
5291889057406
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
