16 Decorative > The Swirl Range
63066/B

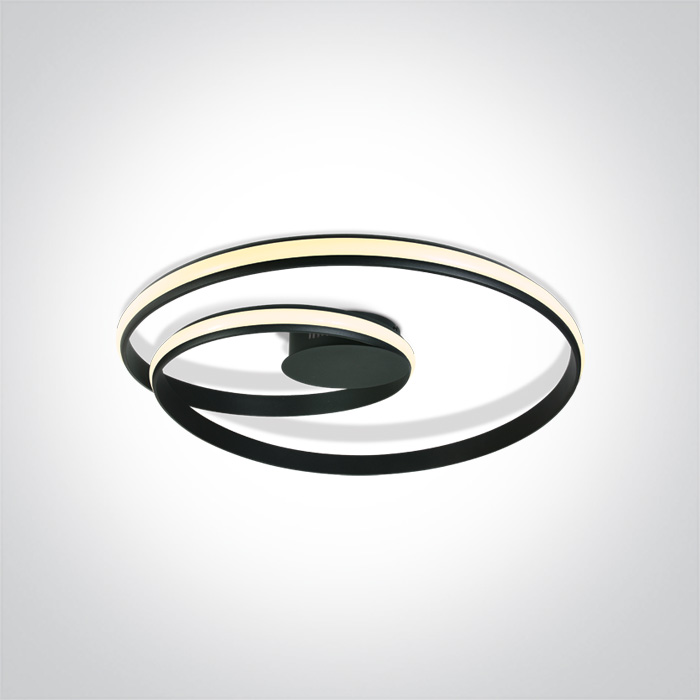

30W LED Decorative ceiling light.
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
The Swirl Range
Order Code
63066/B
Colour
Black
Material
Aluminium + Steel
Shape
Circular
Height
95mm
Diameter
580mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
3.200kg
Pcs/Carton
1
Barcode
5291889066699
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
