16 Decorative > The Cloud Pendant Series

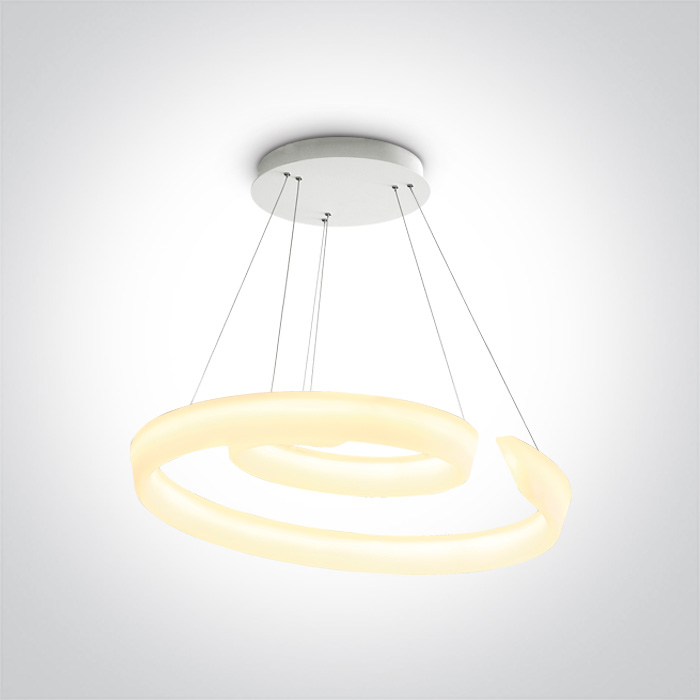

63112/W
60W LED Pendant , IP20 suitable for residential and commercial application .
Complete with 1300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
The Cloud Pendant Series
Order Code
63112/W
Colour
White
Material
Metal
Diffuser Material
Plastic
Shape
Circular
Height
2000mm
Diameter
920mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1300mA
Voltage
42V
Power (Watts)
54,6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
35,1-55,6W
Power Factor
0,9
Constant Current
Yes
1300mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
4800lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
9.400kg
Pcs/Carton
1
Barcode
5291889062936
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
