09 Track Lights > The COB Compact Cylinder Range

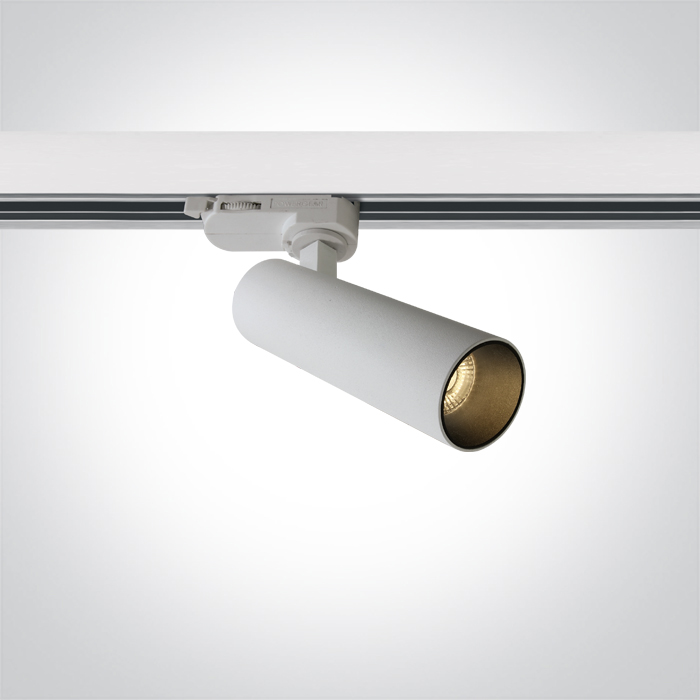

65108T/W/W
8W COB Track Spot, ideal for
shops and showrooms.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
09 Track Lights
Family
The COB Compact Cylinder Range
Order Code
65108T/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
135mm
Diameter
40mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Fitting
Input Type
Constant Current
Input Current
300mA
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
12cm
Box Width
8,5cm
Box Height
17cm
Box Weight
0.241kg
Pcs/Carton
24
Barcode
5291889058427
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
