09 Track Lights > The COB Shop Range
65660BT/B/C

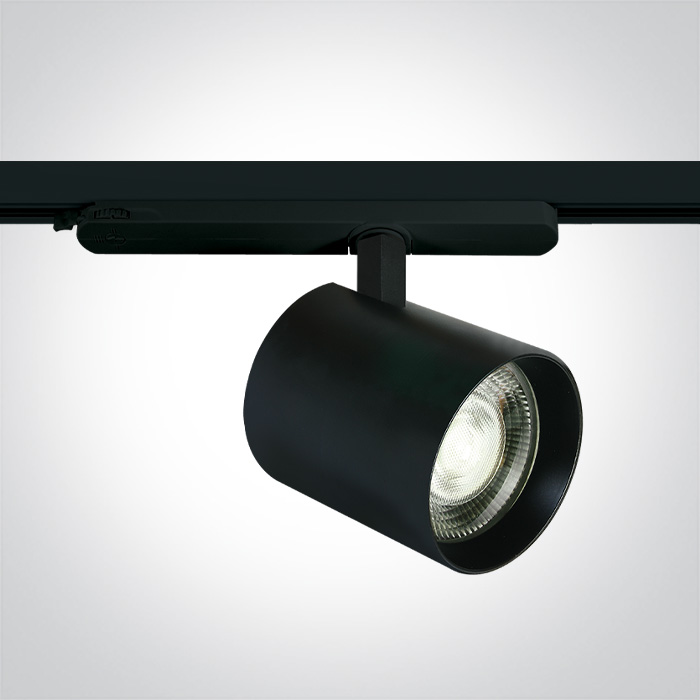

20W/25W/30W/35W Adjustable power COB LED track spot, ideal for shops and showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
The COB Shop Range
Order Code
65660BT/B/C
Colour
Black
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
100mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W/25W/30W/35W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
500mA/700mA/800mA/950mA
Voltage
34V
Power (Watts)
17W/23,8W/27,2W/32,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to table
Power Factor
0,9
Constant Current
Yes
500mA
10-42V
700mA
10-42V
800mA
10-42V
900mA
10-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
2400lm/3000lm/3600lm/4200lm
Light Efficiency
120lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
1.030kg
Pcs/Carton
10
Barcode
5291889073178
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
