09 Track Lights > The COB Shop Range Dimmable
65660BTT/W/W

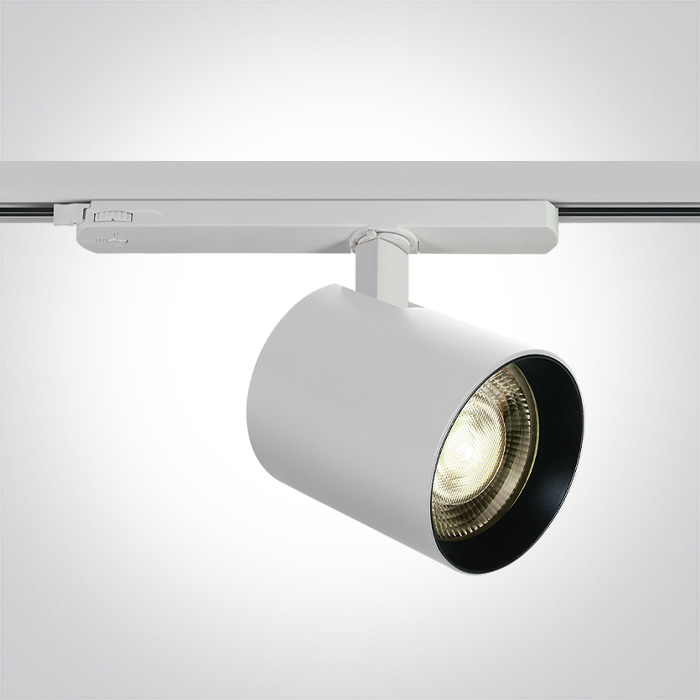

35W Dimmable COB LED track spot, ideal for shops and showrooms.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
The COB Shop Range Dimmable
Order Code
65660BTT/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
100mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
35W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Fitting
Input Type
Constant Current
Voltage
36V
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to table
Power Factor
0,9
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
4200lm
Light Efficiency
120lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
1.160kg
Pcs/Carton
10
Barcode
5291889074366
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
