09 Track Lights > Linear Track Lights CCT V
65664AT/B/V

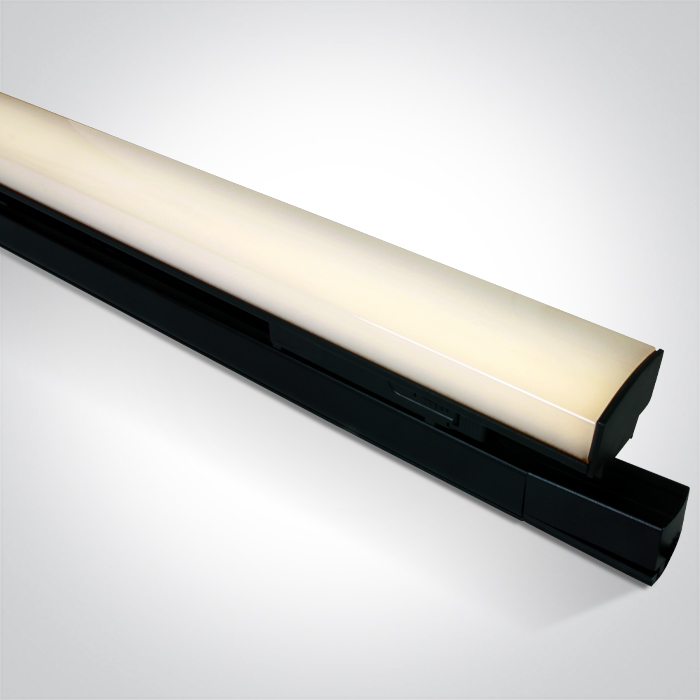

LED Linear track light with adjustable CCT. Ideal for shops and showrooms.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
Linear Track Lights CCT V
Order Code
65664AT/B/V
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
572mm
Width
60mm
Height
55mm
Track mounted
Yes
Indoor
Yes
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
42V
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Hongli
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
700mA
42V
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
3600lm
Light Efficiency
120lm/w
CRI
90
Beam Angle
100
Illumination Diagram
Packing Info
Box Weight
0.825kg
Pcs/Carton
20
Barcode
5291889077527
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Year in which the CE mark was affixed
23
