20 Garden & Underwater > The Project Bollard Range Die cast
67510A/AN/W

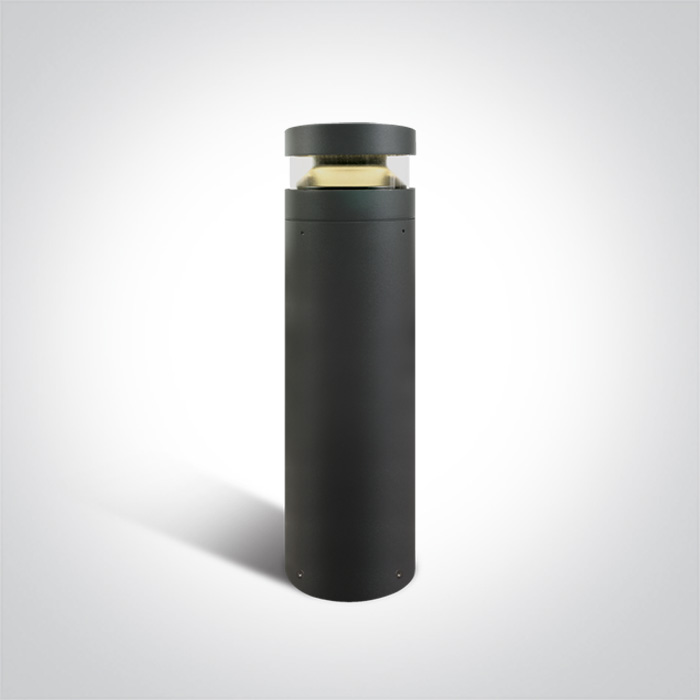

20W LED Bollard, IP65 for Garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The Project Bollard Range Die cast
Order Code
67510A/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
600mm
Diameter
160mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
32,8V
Power (Watts)
16,4W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
15-21W
Power Factor
0,9
Constant Current
Yes
500mA
30-42v
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
55°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
2000lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
4.850kg
Pcs/Carton
2
Barcode
5291889069065
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
