13 Wall & Ceiling LED > Linear Outdoor Series Double Sided

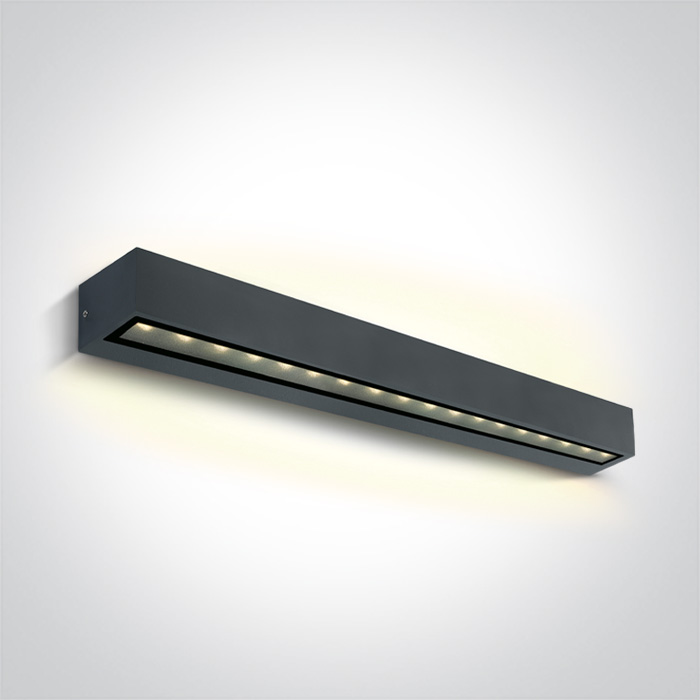

67526B3/AN/W
2x13W Wall light, IP65.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Linear Outdoor Series Double Sided
Order Code
67526B3/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
500mm
Width
76mm
Height
66mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
7
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x13W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
17,44V
Power (Watts)
24,42W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
26,6-30,1W
Power Factor
0,9
Constant Current
Yes
700mA
28-43V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1560lm
Light Efficiency
60lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.600kg
Pcs/Carton
4
Barcode
5291889075813
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
