19 Wall Recessed & Inground > The GX53 Inground Range Stainless steel
69008

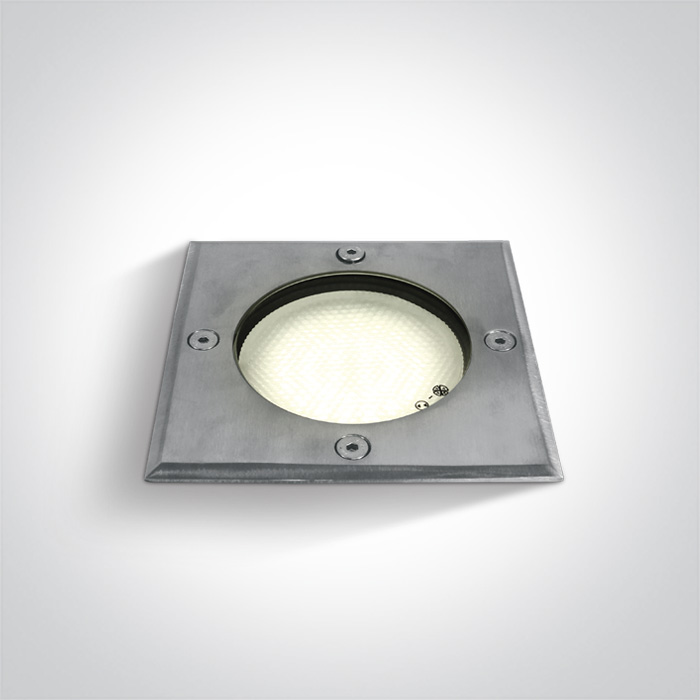

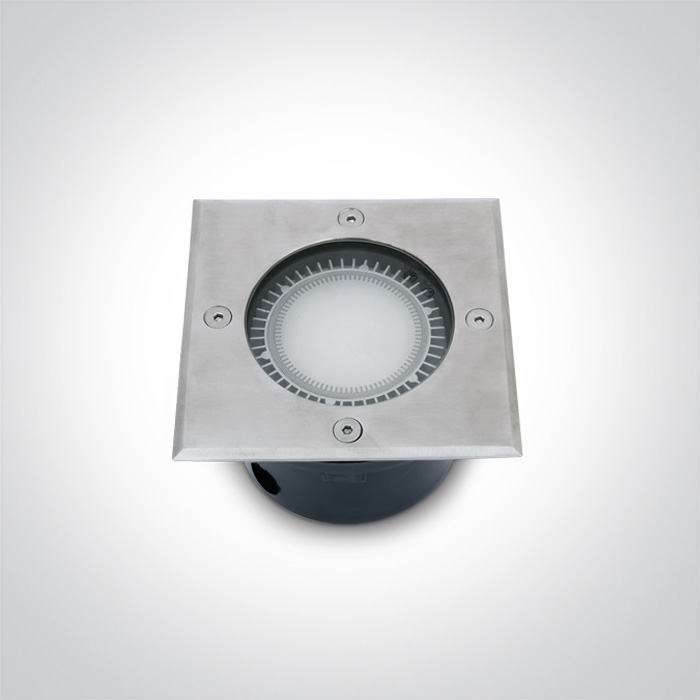

Inground, stainless steel light with GX53 lampholder.
In and out glands for easy connection.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

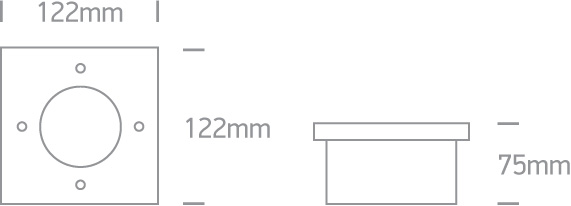

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The GX53 Inground Range Stainless steel
Order Code
69008
Colour
Stainless Steel
Material
Stainless Steel 316
Shape
Rectangular
Length
122mm
Width
122mm
Height
75mm
Cutout Hole Diameter
110mm
Inground
Yes
Depth Required
90mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP67
Light Source
Replaceable lamp
Lamp Holder
GX53
Number of Lamps
1
Dimmable
N/A
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Weight
0.690kg
Pcs/Carton
20
Barcode
5291889024811
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
