19 Wall Recessed & Inground > The Inground Tiltable Range
69074A/W

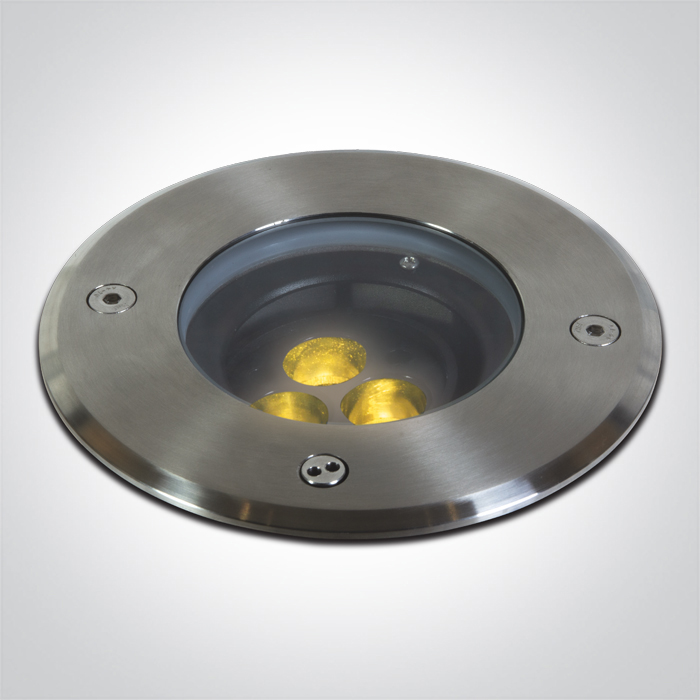

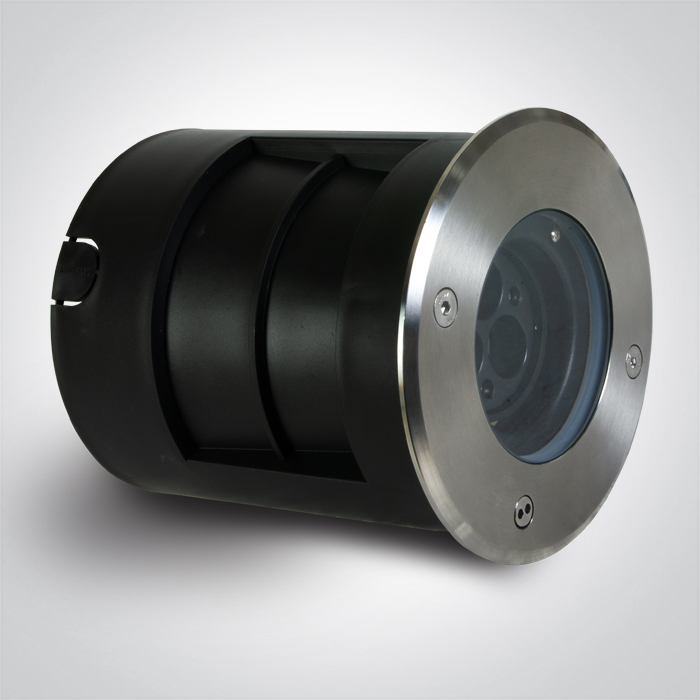

3x1,5W COB LED inground uplight with a 36° beam which is tiltable +/-20°. IP67, stainless steel 316L and die cast aluminium body.
Supplied with non-dimmable LED driver and box for concrete installation.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver and box for concrete installation.
Complies with standard EN60598-1 and any other specific standards.

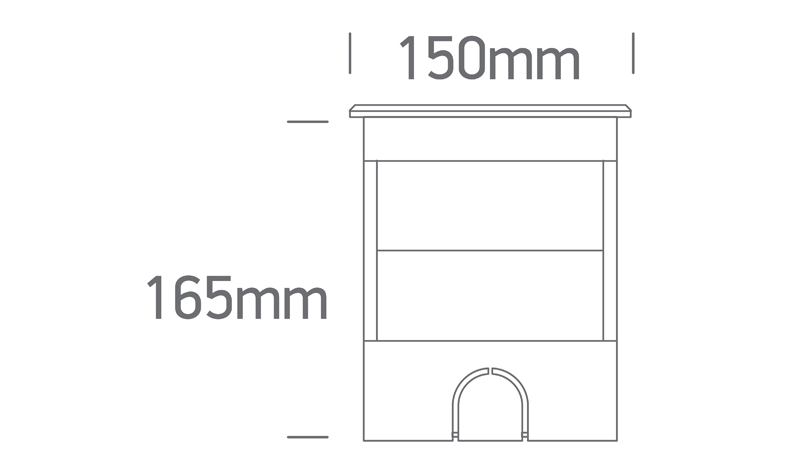

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The Inground Tiltable Range
Order Code
69074A/W
Colour
Stainless Steel
Material
Die Cast
Shape
Circular
Height
165mm
Diameter
150mm
Cutout Hole Diameter
140mm
Inground
Yes
Depth Required
185mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3x1,5W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,4
Constant Current
Yes
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
320lm
Light Efficiency
71lm/W
CRI
80
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
2.320kg
Pcs/Carton
8
Barcode
5291889079637
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
