20 Garden & Underwater > The 10W COB Garden Spots Aluminium
7046/W/W

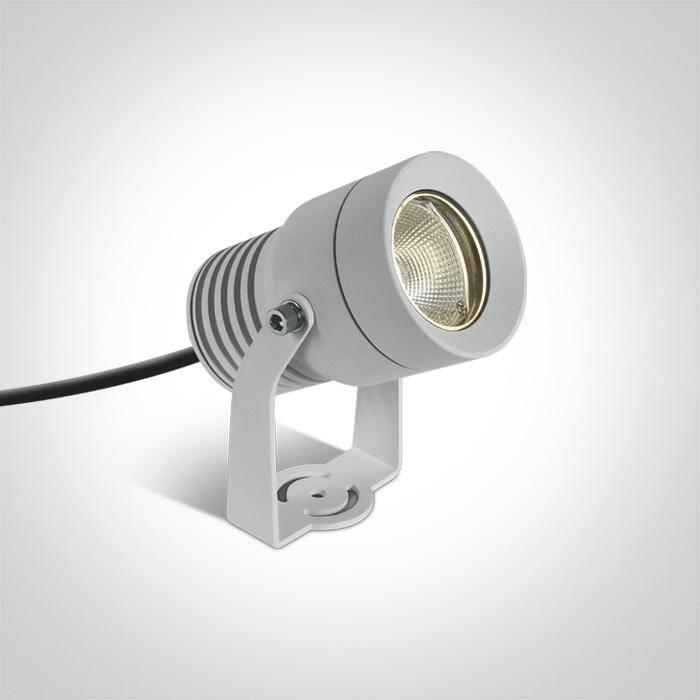

10W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The 10W COB Garden Spots Aluminium
Order Code
7046/W/W
Colour
White
Material
Aluminium
Diffuser Material
Glass
Shape
Circular
Height
125mm
Diameter
75mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
45V
Power (Watts)
9W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,4-9W
Power Factor
0,9
Constant Current
Yes
200mA
27-45V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
55°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
850lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
50°
Illumination Diagram
Packing Info
Box Length
11cm
Box Width
9cm
Box Height
19cm
Box Weight
1.066kg
Pcs/Carton
12
Barcode
5291889038993
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
15
