08 Strips & Profiles > Neon Flex Lightlines
.jpg)
.jpg)
7811/W
Flex Lightline, with SMD2216 LEDs, 192LEDs/meter, 10W/meter.Supplied in 5 meters roll .
Can be cut every 3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

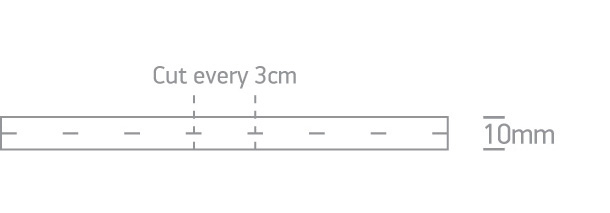

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Neon Flex Lightlines
Order Code
7811/W
Material
Silicone
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
10W/m
IP Rating
IP67
Light Source
LED built in
LED Type
SMD 2216
LED Brand
Epistar
LED Number
192LEDs/m
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm/m
Light Efficiency
55lm/W
CRI
90
Illumination Diagram
Packing Info
Box Length
32cm
Box Width
32cm
Box Height
2,5cm
Box Weight
0.780kg
Pcs/Carton
40
Barcode
5291889055815
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
