08 Strips & Profiles > RGB Set
7820A/RGB

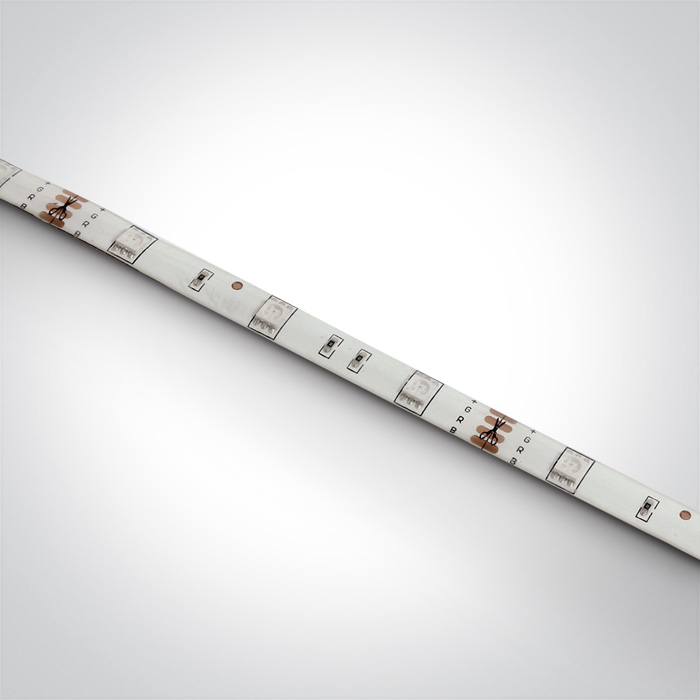

2W/meter RGB flexible complete LED light strip set, 30LEDs/meter. Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.
Can be cut every 10cm (3-LED segment).

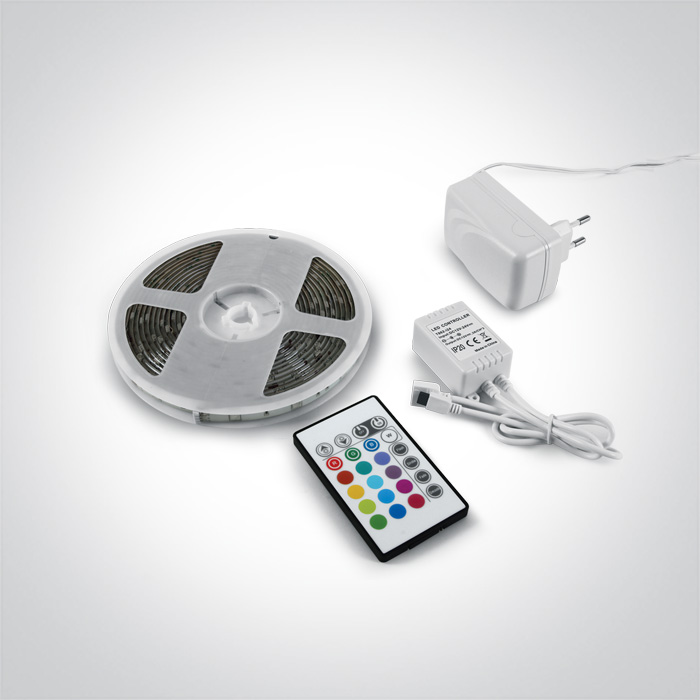

Complete with 12V DC constant voltage LED controller and remote control.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (3-LED segment).
Complete with 12V DC constant voltage LED controller and remote control.
Complies with standard EN60598-1 and any other specific standards.

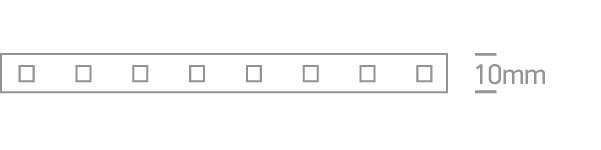

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
RGB Set
Order Code
7820A/RGB
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2W/m
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Fitting
Input Type
Constant Voltage
Input Voltage
12V DC
Safety Class
Power (Watts)
2W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5050
LED Number
30Leds/m
Gear
Gear Type
Led Controller
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3x36W
Power Factor
0,9
Constant Voltage
Yes
12 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
RGB
Illumination Diagram
Packing Info
Box Length
19cm
Box Width
19cm
Box Height
6,5cm
Box Weight
0.390kg
Pcs/Carton
10
Barcode
5291889027065
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
