08 Strips & Profiles > Modules for Signs & Backlit Applications
7840B/D
2x 0,5W/5W/m LED module, IP65 .
Supplied in 50pcs chain total length 10m.
Requires 12V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 50pcs chain total length 10m.
Requires 12V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

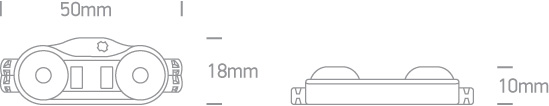

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Modules for Signs & Backlit Applications
Order Code
7840B/D
Material
Plastic
Shape
Rectangular
Length
50mm
Width
18mm
Height
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V DC
Safety Class
Power (Watts)
2x0,5W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
2
F Mark
Illumination Data
Colour Temperature
6000K
Lumen Output
90lm
Light Efficiency
90lm/W
Illumination Diagram
Packing Info
Box Weight
0.825kg
Pcs/Carton
30
Barcode
5291889065616
HS Code
8539520000
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
