08 Strips & Profiles > Modules for signs
7840/Y

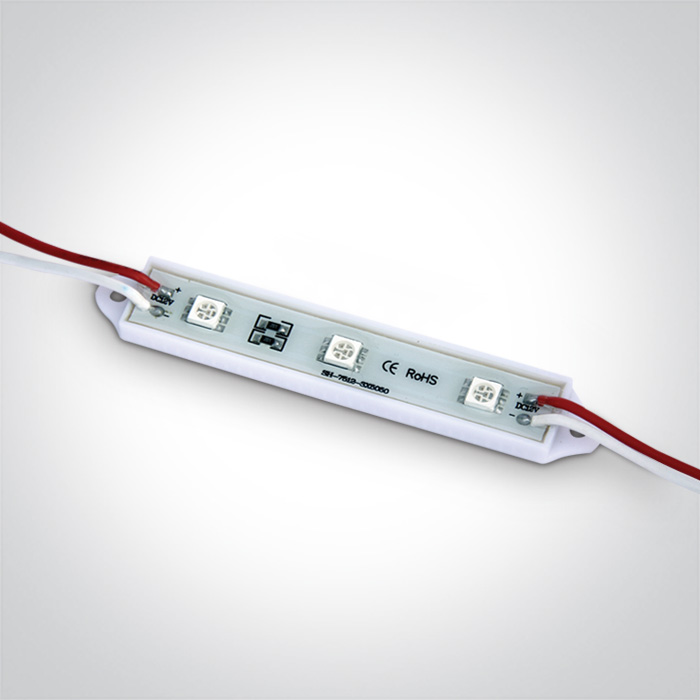

3 x 0,24W LED module, IP65 .

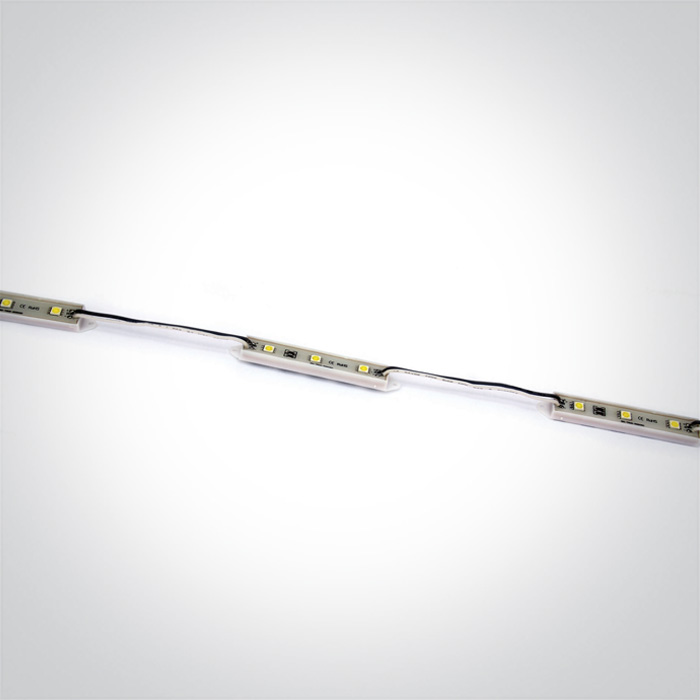

Supplied in 10pcs chain total length 1,7m.
Requires 12V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 10pcs chain total length 1,7m.
Requires 12V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

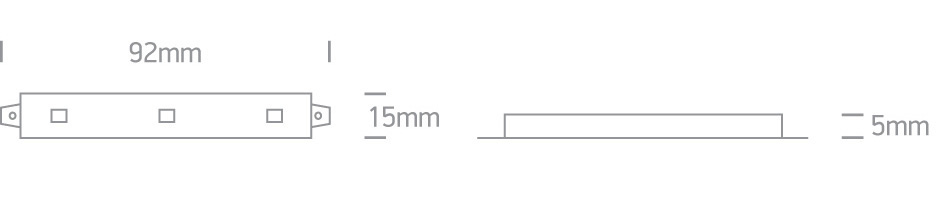

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Modules for signs
Order Code
7840/Y
Shape
Rectangular
Length
92mm
Width
15mm
Height
5mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V DC
Safety Class
Power (Watts)
0,72W
IP Rating
IP65
Light Source
LED built in
LED Number
3Leds
Illumination Data
Colour Temperature
Yellow
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
5cm
Box Height
5cm
Box Weight
0.095kg
Pcs/Carton
100
Barcode
5291889026570
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
