08 Strips & Profiles > The 24W/m Indoor 24V
7845/C

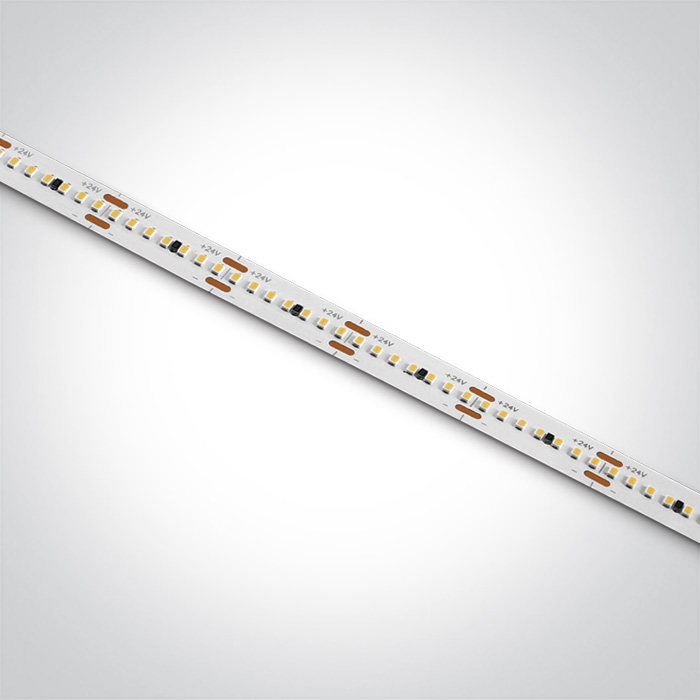

Flexible LED light strip, with SMD2216 LEDs, 280LEDs/meter, 24W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

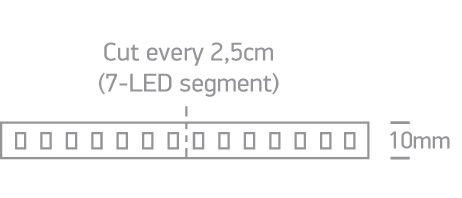

Can be cut every 2,5cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 2,5cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The 24W/m Indoor 24V
Order Code
7845/C
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
24W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2216
LED Brand
Refond
LED Number
280LEDs/m
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
2450lm/m
Light Efficiency
102,08lm/W
CRI
90
Illumination Diagram

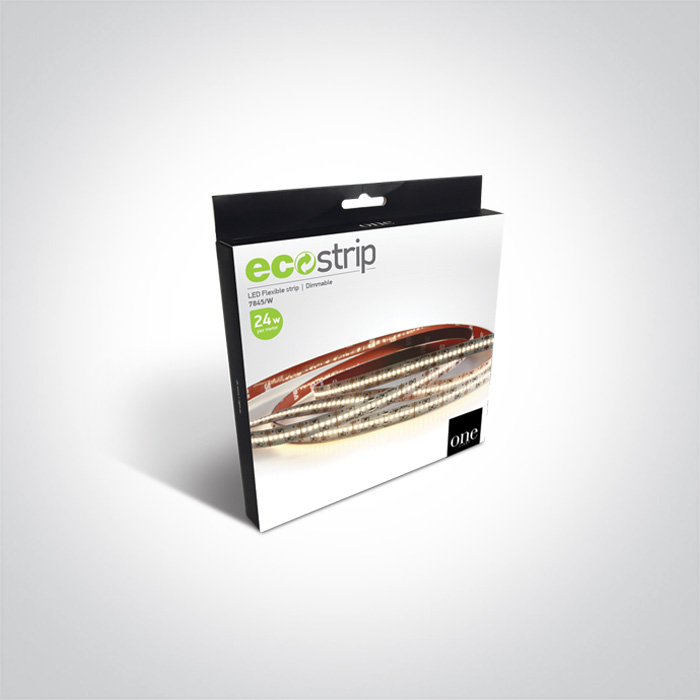

Packing Info
Box Length
24cm
Box Width
21,5cm
Box Height
2cm
Box Weight
0.202kg
Pcs/Carton
40
Barcode
5291889052333
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
