08 Strips & Profiles > The 230V IP65 Range
.jpg)
.jpg)
.jpg)
.jpg)
7862/C

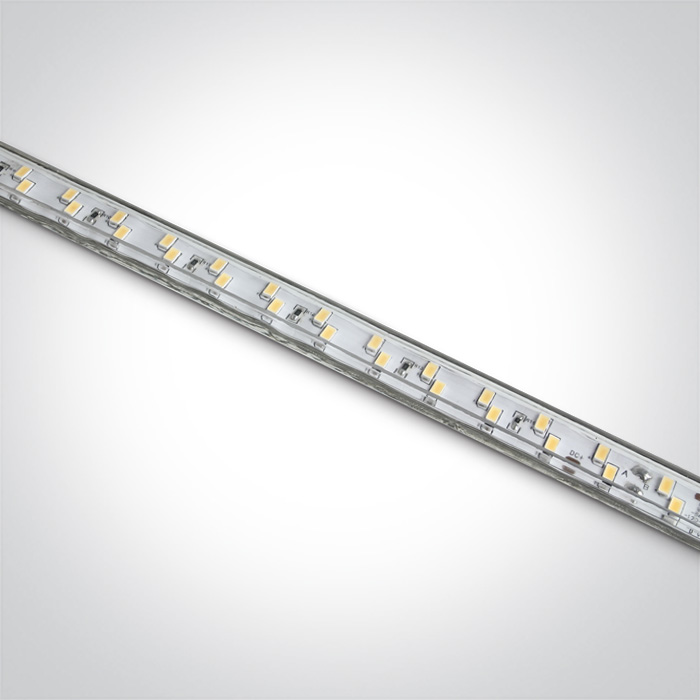

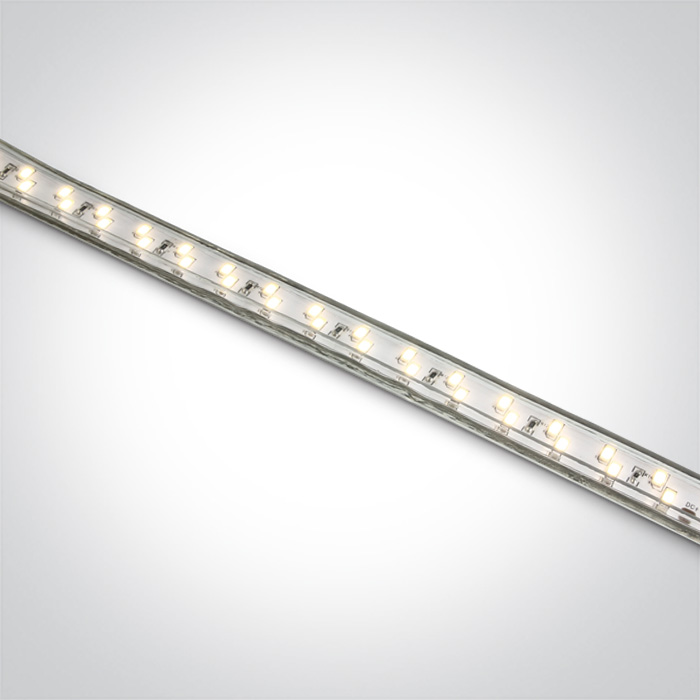

Mains voltage LED strip, IP65.

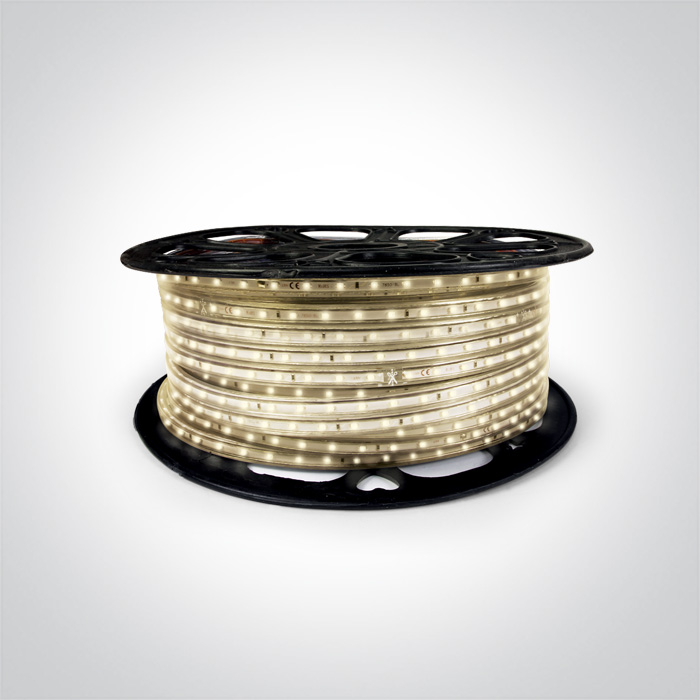

Available in 30m rolls.

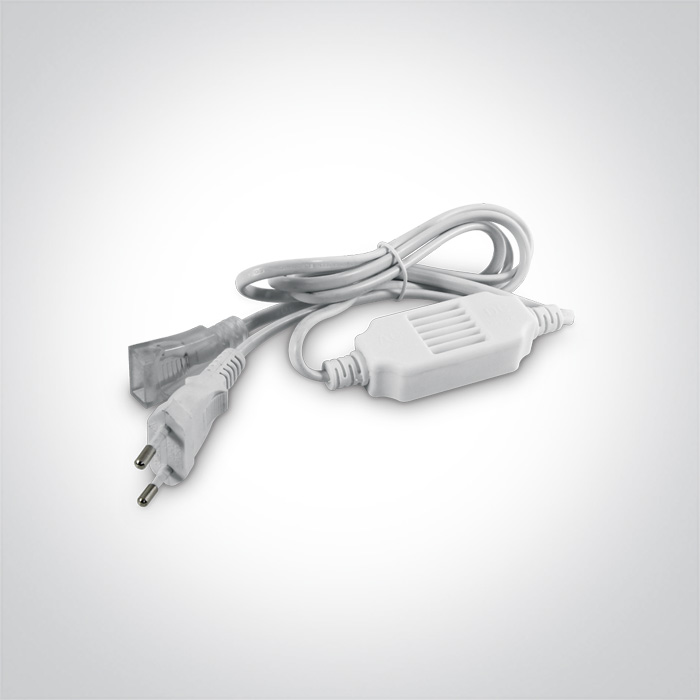

Requires power supply order code 7862P.
Can be cut every 1 meter.
Complies with standard EN60598-1 and any other specific standards.
Available in 30m rolls.
Requires power supply order code 7862P.
Can be cut every 1 meter.
Complies with standard EN60598-1 and any other specific standards.

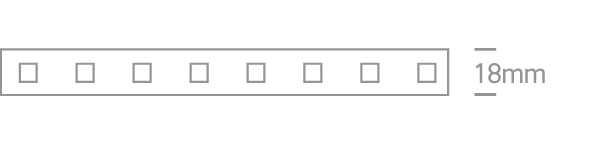

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The 230V IP65 Range
Order Code
7862/C
Material
PVC
Shape
Rectangular
Length
30m
Height
18mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
13W/m
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Safety Class
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 5630
LED Brand
Epistar
LED Number
120LEDs/m
Gear
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP65
Safety Class
Illumination Data
Colour Temperature
4000K
Lumen Output
1050lm/m
Light Efficiency
80,76lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
34cm
Box Width
34cm
Box Height
16,5cm
Box Weight
0.193kg
Pcs/Carton
30
Barcode
5291889057642
HS Code
9405423100

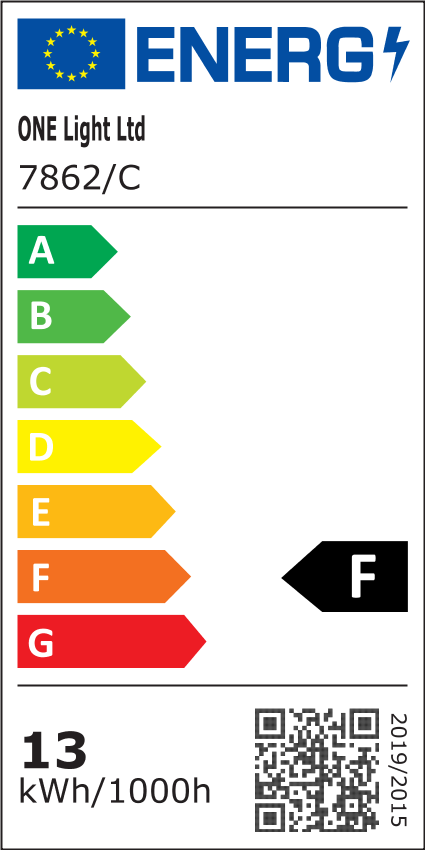

Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
