08 Strips & Profiles > 230V Neon Flex Lightline
7864/W
230V Waterproof Square Neonflex 9W/m, IP65 .
Supplied in 50m rolls.
Can be cut every 1m.

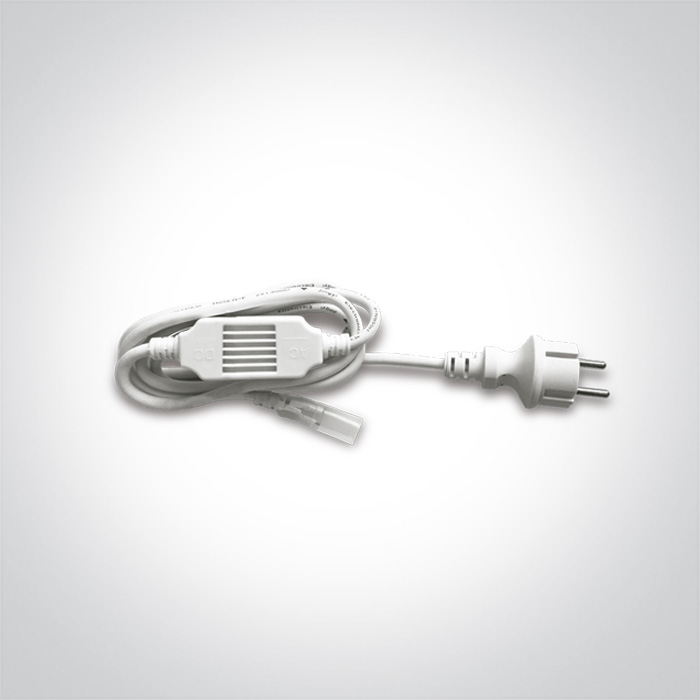

Complete power supply 7864P.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 50m rolls.
Can be cut every 1m.
Complete power supply 7864P.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
230V Neon Flex Lightline
Order Code
7864/W
Material
PVC
Shape
Rectangular
Length
50000mm
Width
8mm
Height
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W/m
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
120LEDs/m
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
450W
Power Factor
0,9
IP Rating
IP65
Illumination Data
Colour Temperature
3000K
Lumen Output
270lm
Light Efficiency
30lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.154kg
Pcs/Carton
50
Barcode
5291889066507
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
