08 Strips & Profiles > The High Power Strips 24V
7880/W

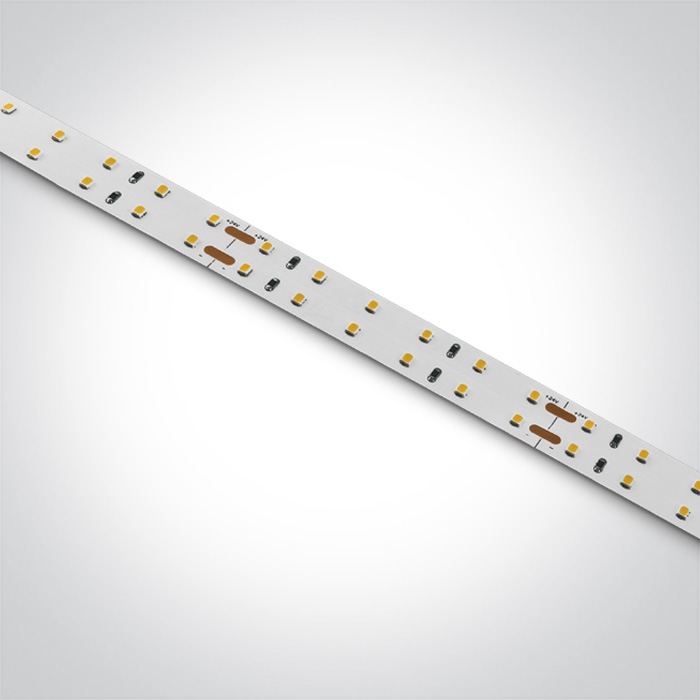

Flexible LED light strip, with SMD2835 LEDs, 120LEDs/meter, 28,8W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.
Can be cut every 10cm (12-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (12-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

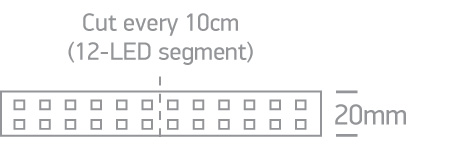

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The High Power Strips 24V
Order Code
7880/W
Shape
Rectangular
Length
5000mm
Width
20mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
28,8W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
120LEDs/m
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
2260lm/m
Light Efficiency
78,47lm/W
CRI
90
Illumination Diagram
Packing Info
Box Length
22,5cm
Box Width
22,5cm
Box Height
3cm
Box Weight
0.305kg
Pcs/Carton
40
Barcode
5291889040453
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
