08 Strips & Profiles > The High Power Strips 24V
7882/W

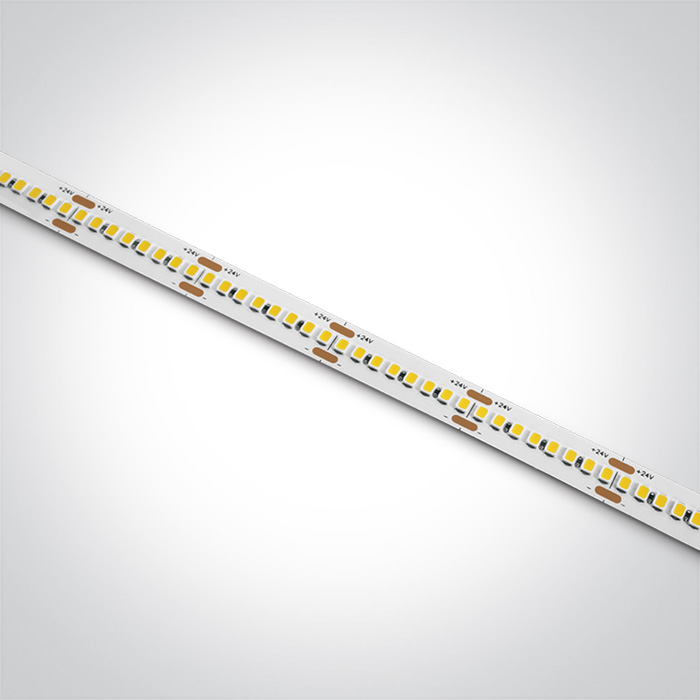

Flexible LED light strip, with SMD2835 LEDs, 240LEDs/meter, 42W/meter.Supplied in 2 meters roll with white PCB and double adhesive tape for a better fixing.

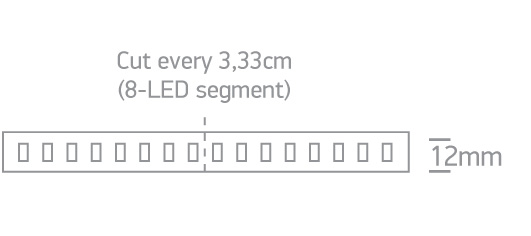

Can be cut every 3,33cm (8-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 3,33cm (8-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The High Power Strips 24V
Order Code
7882/W
Shape
Rectangular
Length
2m
Width
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
42W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Refond
LED Number
240Leds/m
Illumination Data
Colour Temperature
3000K
Lumen Output
6100lm/m
Light Efficiency
145lm/W
CRI
90
Illumination Diagram
Packing Info
Box Length
24cm
Box Width
21,5cm
Box Height
2cm
Box Weight
0.177kg
Pcs/Carton
40
Barcode
5291889058786
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
