23 Drivers > The 24V DC Dimmable Range Constant voltage

89030VD

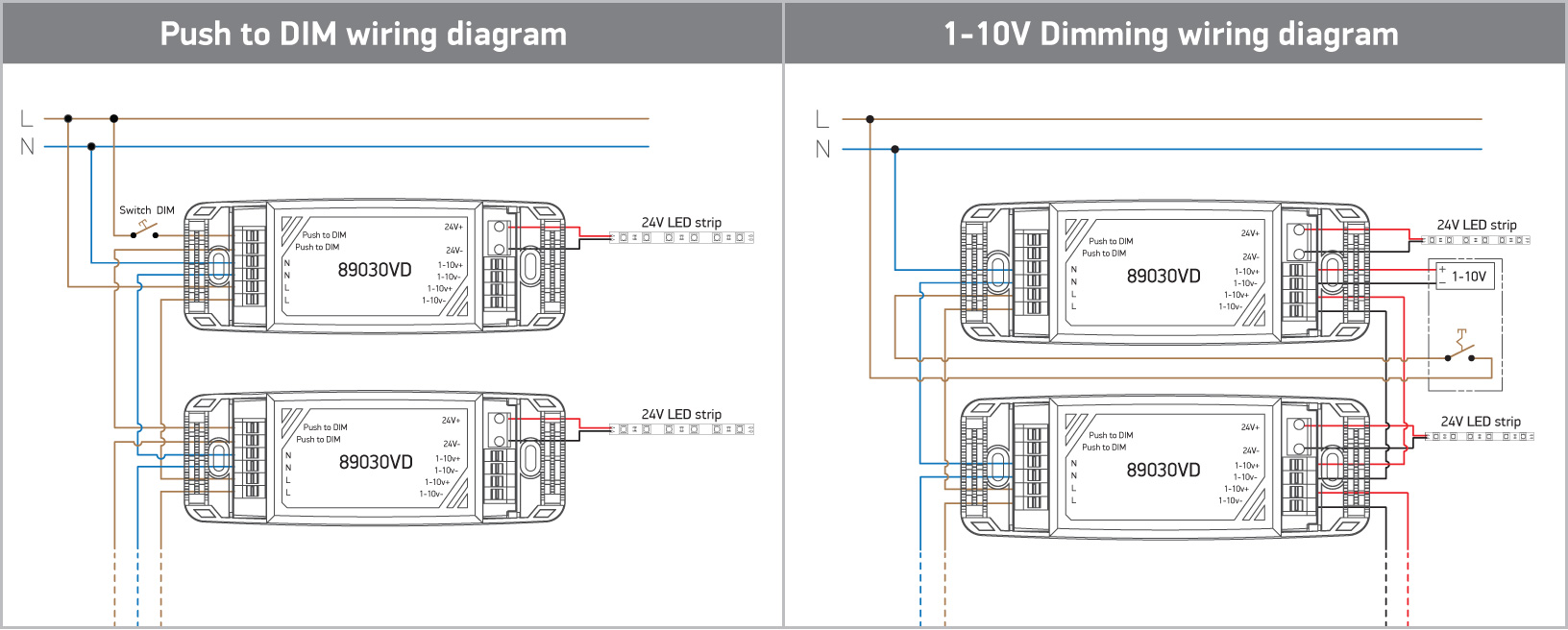

Wiring Diagram
/Assets/materials/files/diagrams/89030VD-wiring.jpg

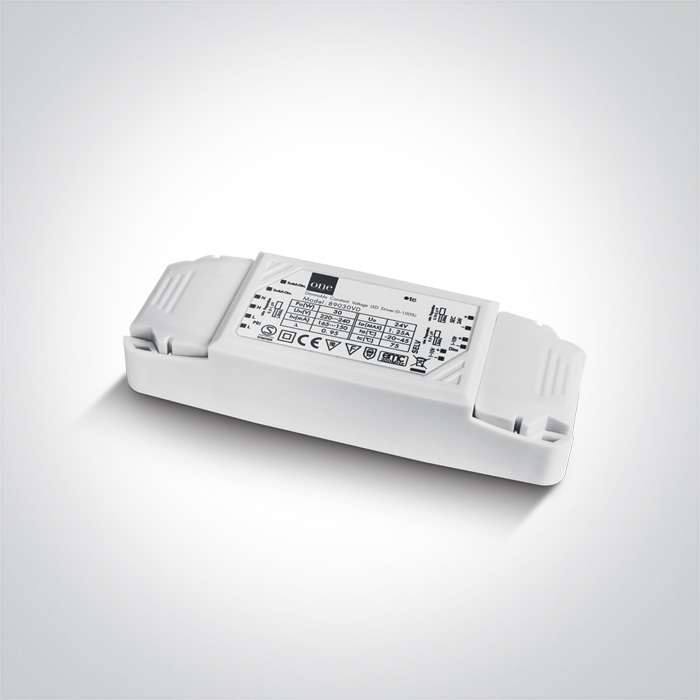

89030VD

30W 24V DC 1-10V & Push to Dim dimmable constant voltage driver, IP20.

Complies with standard EN61347-1 and any other specific standards.
Indoor
IP
Dimmable
CE

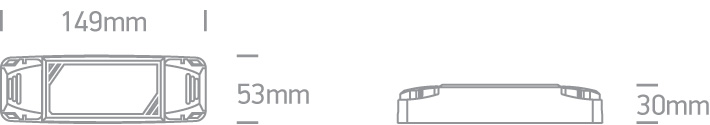

Dimensions
Downloads

Physical Specification

+
Item Group
23 Drivers
Family
The 24V DC Dimmable Range Constant voltage
Order Code
89030VD
Material
Plastic
Shape
Rectangular
Length
149mm
Width
53mm
Height
30mm
Indoor
Yes

Electrical Characteristics

+
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30W
Power Factor
0,95
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Push to Dim, 1-10V
Ambient Temp
-20ºC~45ºC
Operating Temp
75ºC
Housing Material
Plastic
Output Terminal
Connector

Packing Info

+
Box Length
15,7cm
Box Width
5,5cm
Box Height
3,6cm
Box Weight
0.300kg
Pcs/Carton
20
Carton Length
25cm
Carton Width
21cm
Carton Height
23cm
Carton Weight
5,9Kg
Barcode
5291889046516
HS Code
8504408390

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
