23 Drivers > High Power 1200mA Dimmable Constant current
89048T
Triac Dimmable Constant current LED driver for 1200mA LED fittings, 32-50W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

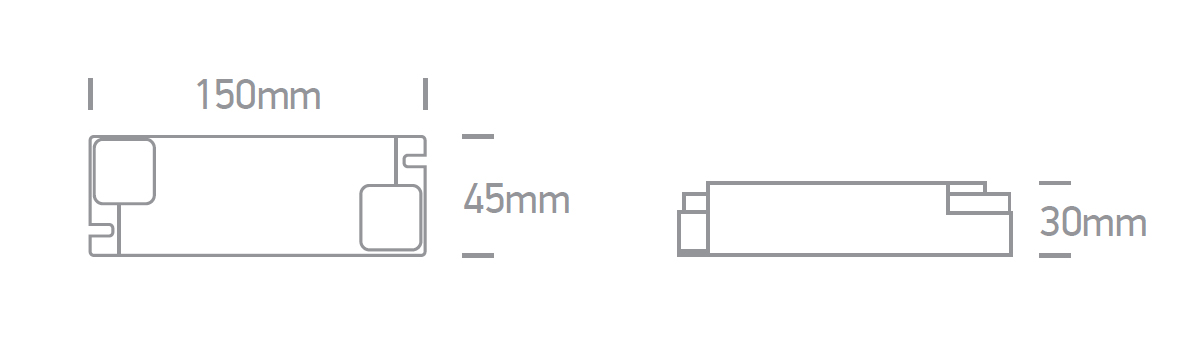

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
High Power 1200mA Dimmable Constant current
Order Code
89048T
Material
Plastic
Shape
Rectangular
Length
150mm
Width
45mm
Height
30mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
32-50W
Power Factor
0,9
Constant Current
Yes
1200mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
45ºC
Operating Temp
85ºC
Housing Material
Plastic
Output Terminal
Cable
Cable Length
25cm
Fast Connector
Yes
Fast Connector Type
Other
Packing Info
Box Length
19cm
Box Width
3,5cm
Box Height
8,5cm
Box Weight
0.262kg
Pcs/Carton
1
Barcode
5291889041818
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
