89050VT

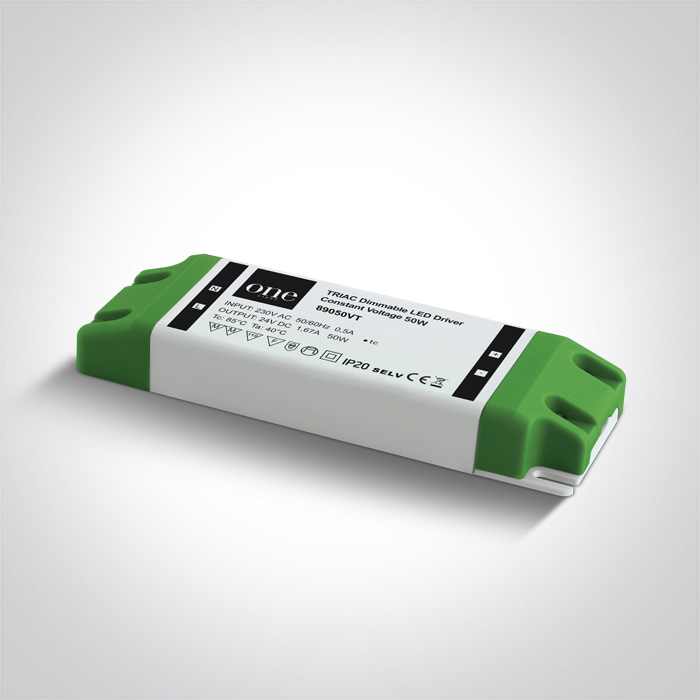

12-50W 24V DC TRIAC dimmable constant voltage driver, IP20.

Complies with standard EN61347-1 and any other specific standards.
Indoor
IP
Dimmable
CE

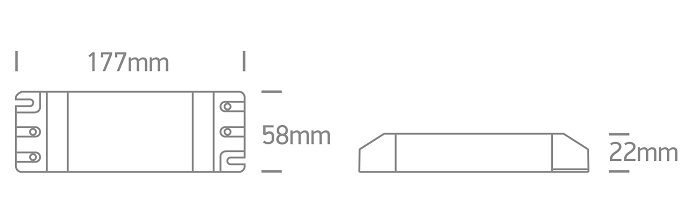

Dimensions
Downloads

Physical Specification

+
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89050VT
Material
Plastic
Shape
Rectangular
Length
177mm
Width
58mm
Height
22mm
Indoor
Yes

Electrical Characteristics

+
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12-50W
Power Factor
≥0,90
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
45ºC
Operating Temp
85ºC
Housing Material
Plastic
Output Terminal
Connector

Packing Info

+
Pcs/Carton
20
Barcode
5291889080848
HS Code
8504408390

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
