23 Drivers > The 24V DC Waterproof IP67 Range Constant voltage
89200VP

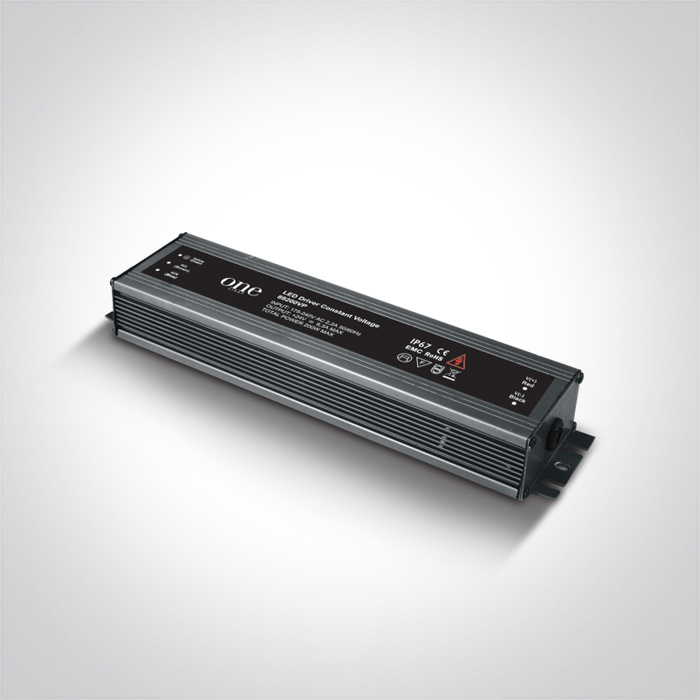

200W 24V DC constant voltage driver, Waterproof IP67.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

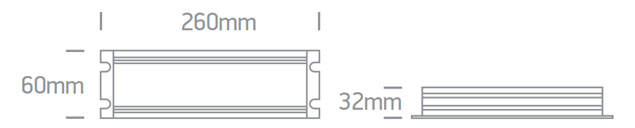

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 24V DC Waterproof IP67 Range Constant voltage
Order Code
89200VP
Material
Metal
Shape
Rectangular
Length
260mm
Width
60mm
Height
32mm
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
200W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP67
Safety Class
Dimmable
No
Ambient Temp
60ºC
Operating Temp
70ºC
Housing Material
Metal
Output Terminal
Cable
Cable Length
100cm
Packing Info
Box Length
26,5cm
Box Width
9cm
Box Height
3,5cm
Box Weight
1.075kg
Pcs/Carton
32
Barcode
5291889040842
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
