23 Drivers > The 48V DC Range Constant voltage
89200X

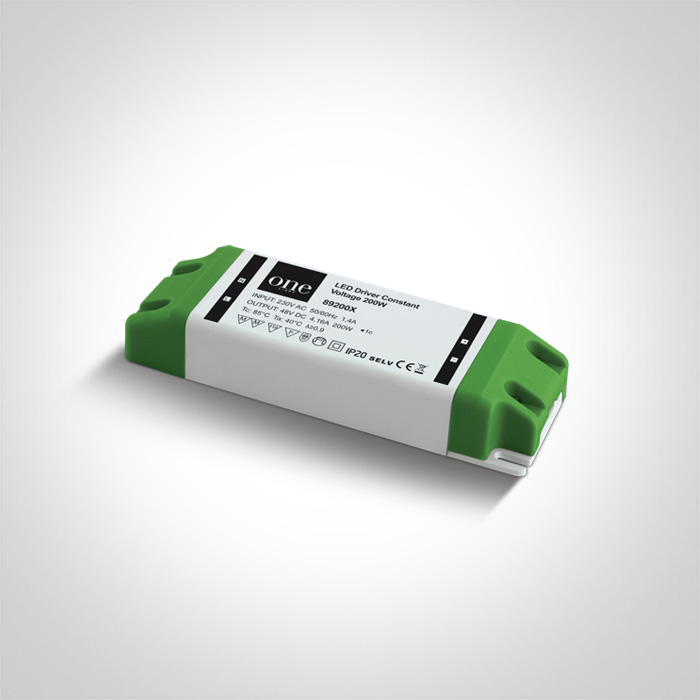

200W 48V DC constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

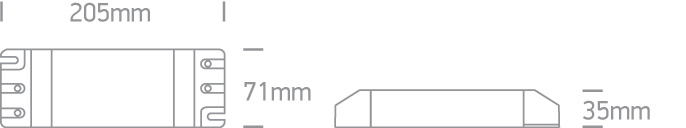

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 48V DC Range Constant voltage
Order Code
89200X
Material
Plastic
Shape
Rectangular
Length
205mm
Width
71mm
Height
35mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
200W
Power Factor
0,9
Constant Voltage
Yes
48 V
Yes
IP Rating
IP20
Safety Class
Housing Material
Metal
Output Terminal
Connector
Packing Info
Box Weight
0.828kg
Pcs/Carton
25
Barcode
5291889072225
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
