23 Drivers > The 48V DC Range Constant voltage
89320X

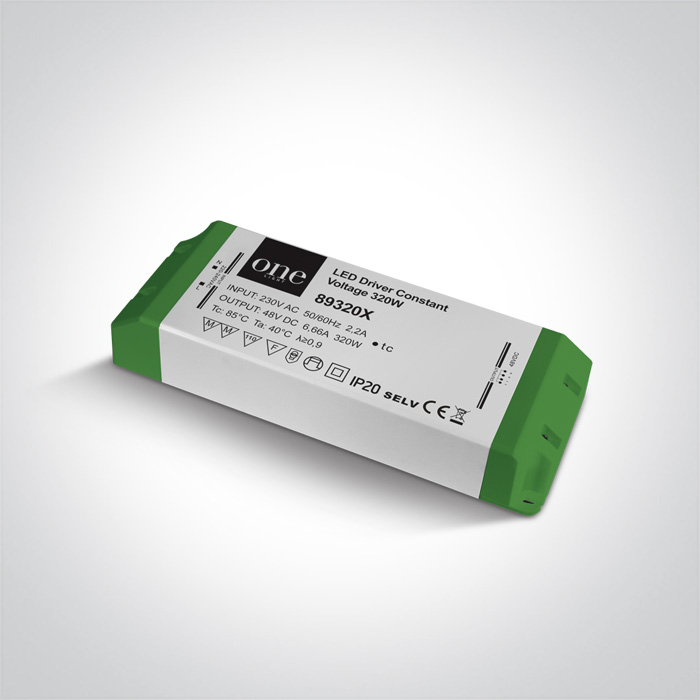

320W 48V DC constant voltage driver, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

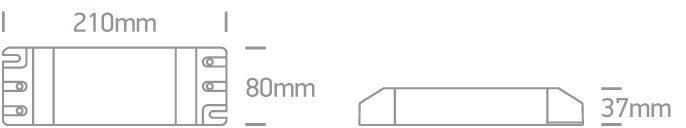

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 48V DC Range Constant voltage
Order Code
89320X
Material
Plastic
Shape
Rectangular
Length
210mm
Width
80mm
Height
37mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
320W
Power Factor
0,9
Constant Voltage
Yes
48 V
Yes
IP Rating
IP20
Safety Class
Housing Material
Metal
Output Terminal
Connector
Packing Info
Box Weight
0.950kg
Pcs/Carton
20
Barcode
5291889072287
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
