    • 23 Drivers > The 48V DC Open Range Constant voltage

    89350XN
    89350XN

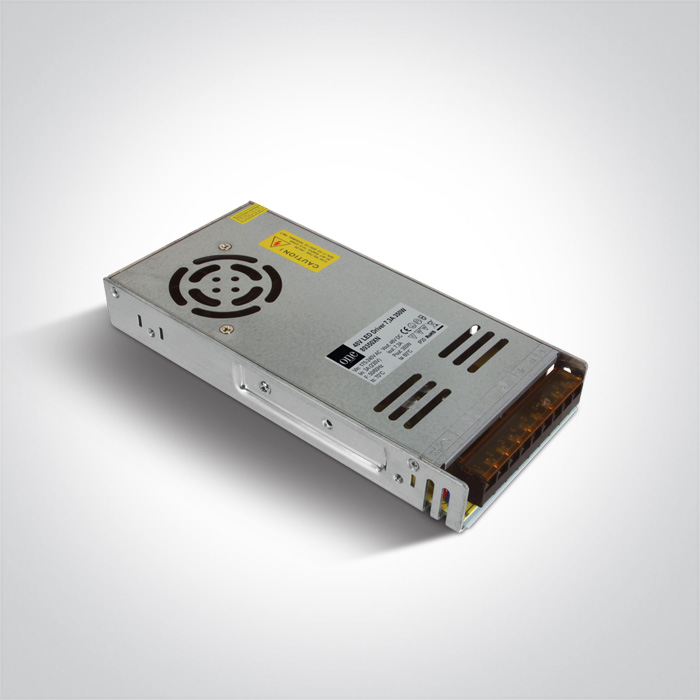

    350W 48V DC constant voltage driver with cooling fan, IP20.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    CE

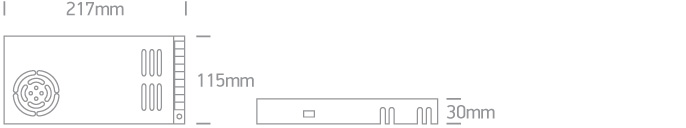

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    23 Drivers
    Family
    The 48V DC Open Range Constant voltage
    Order Code
    89350XN
    Material
    Plastic
    Shape
    Rectangular
    Length
    217mm
    Width
    115mm
    Height
    30mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    350W
    Power Factor
    0,9
    Constant Voltage
    Yes
    IP Rating
    IP20
    Safety Class
    Ambient Temp
    40ºC
    Operating Temp
    85ºC
    Housing Material
    Metal
    Output Terminal
    Connector

    Packing Info

    +
    Box Weight
    0.740kg
    Pcs/Carton
    27
    Barcode
    5291889072577
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    22
