ONE Light

    • 25 Lamps > T5 Tubes Glass

    9018LA/C
    Wiring Diagram
    /Assets/materials/files/diagrams/wiring-diagram-led-tubes.jpg
    9018LA/C

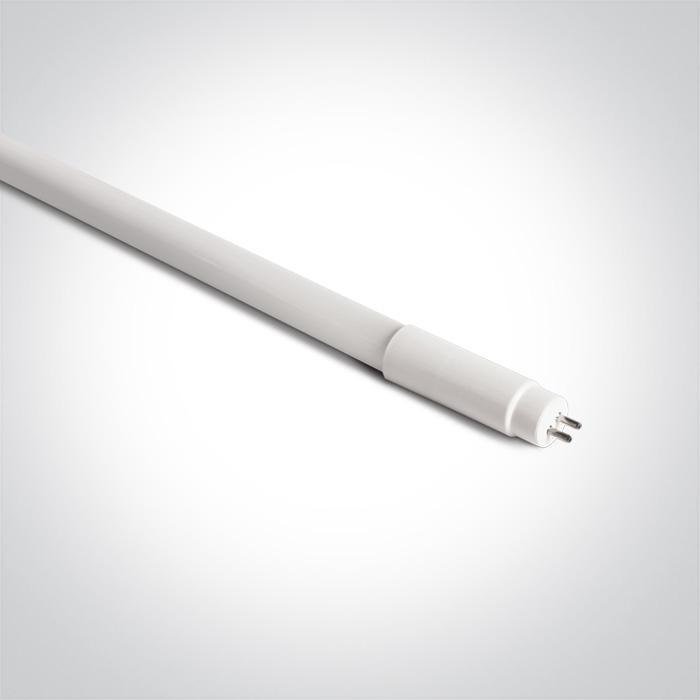

    Glass T5 LED tube.

    Complies with standard EN62560 and any other specific standards.
    CRI
    Beam Angle
    CE

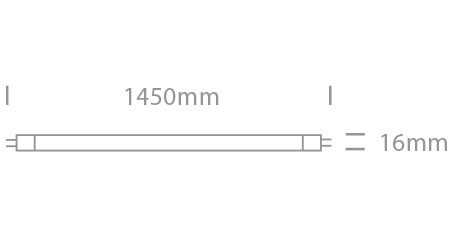

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    25 Lamps
    Family
    T5 Tubes Glass
    Order Code
    9018LA/C
    Shape
    Circular
    Height
    1450mm
    Diameter
    16mm

    Electrical Characteristics

    +
    Gear
    No
    Lamp
    Input Type
    Mains Voltage
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    18W
    Lamp Type
    LED
    Lamp Holder
    G5
    LED Type
    SMD
    Dimmable
    No

    Illumination Data

    +
    Colour Temperature
    4000K
    Lumen Output
    2800lm
    Light Efficiency
    155,55lm/W
    CRI
    90
    Beam Angle
    320°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.270kg
    Pcs/Carton
    10
    Barcode
    5291889076551
    HS Code
    8539520000

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    2 years
    Average Lifetime
    35000hrs
    Switching Cycles
    50000
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    14
