11 Office & Kitchen > LED Linear Accessories Medium size
050170D/W/C

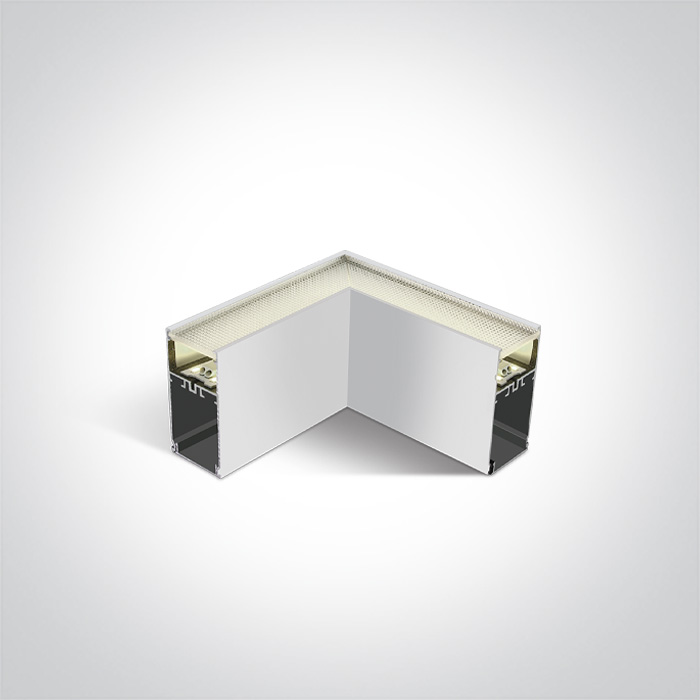

8W LED Corner for 38150A and 38151A.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
LED Linear Accessories Medium size
Order Code
050170D/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
128mm each side
Width
35mm
Height
70mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
30V
Power (Watts)
7,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
48
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7-10,5W
Power Factor
0,95
Constant Current
Yes
250mA
28-42V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
680lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
0.720kg
Pcs/Carton
10
Barcode
5291889075691
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
