02 Recessed Spots Fixed LED > LED Spots
10101C/C/D
1W Cabinet LED Spot IP20.
Requires 12V AC transformer.
Complies with standard EN60598-1 and any other specific standards.
Requires 12V AC transformer.
Complies with standard EN60598-1 and any other specific standards.

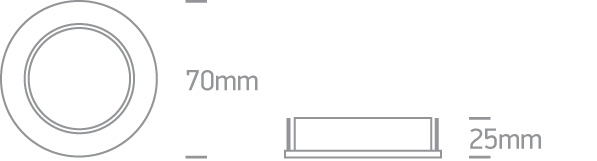

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
LED Spots
Order Code
10101C/C/D
Colour
Chrome
Material
Steel
Diffuser Material
Glass
Shape
Circular
Height
25mm
Diameter
70mm
Cutout Hole Diameter
50mm
Recessed Ceiling
Yes
Depth Required
25mm
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC
Safety Class
Power (Watts)
1W
IP Rating
IP20
Light Source
LED built in
LED Number
1
Cable Length
30cm
F Mark
Illumination Data
Colour Temperature
6000K
Lumen Output
50lm
Beam Angle
90°
Illumination Diagram
Packing Info
Box Weight
0.084kg
Pcs/Carton
100
Barcode
5291889016564
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
