02 Recessed Spots Fixed LED > The Super Mini Series
10101LA/W/W

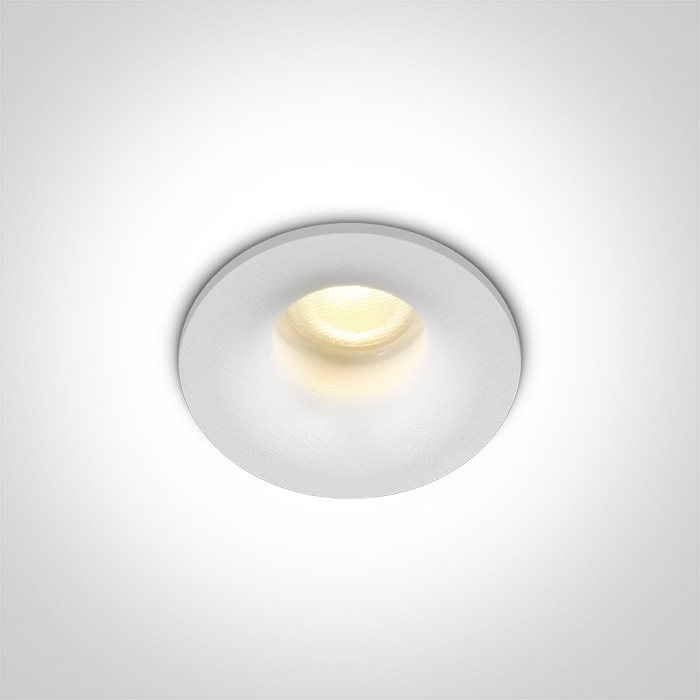

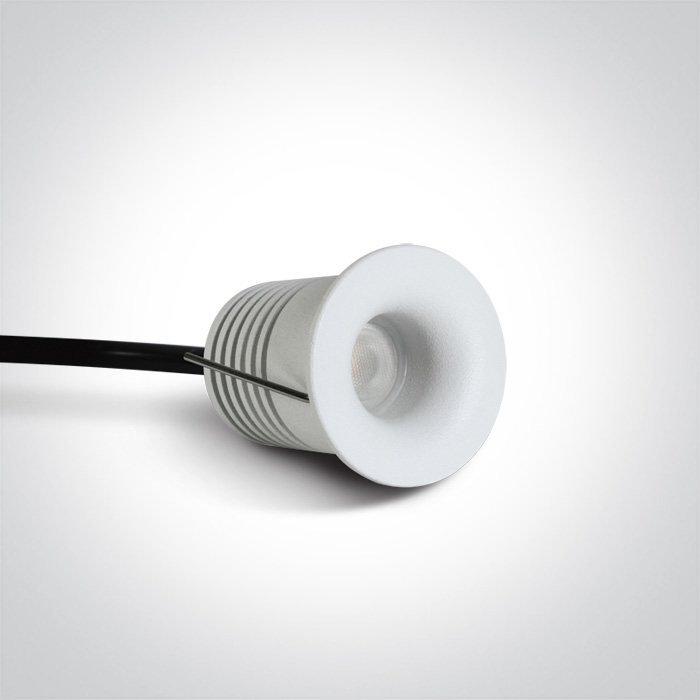

2W COB LED recessed spot.
Requires 700mA driver. Driver cannot pass through the cut-out hole.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver. Driver cannot pass through the cut-out hole.
Complies with standard EN60598-1 and any other specific standards.

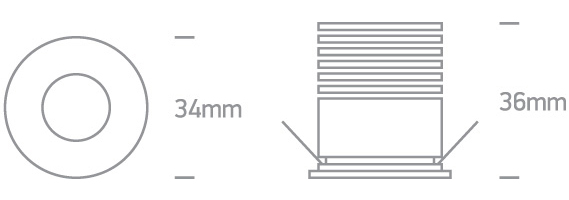

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Super Mini Series
Order Code
10101LA/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
36mm
Diameter
34mm
Cutout Hole Diameter
27mm
Recessed Ceiling
Yes
Depth Required
55mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
2,9V
Safety Class
Power (Watts)
2W
IP Rating
IP44
Light Source
LED built in
LED Type
COB
LED Brand
Philips
Cable Length
200cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
190lm
Light Efficiency
95lm/W
CRI
80
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.108kg
Pcs/Carton
100
Barcode
5291889064350
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
