02 Recessed Spots Fixed LED > The IP65 Project Range Aluminium
10102H/B/W
2W COB LED recessed spot IP65.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

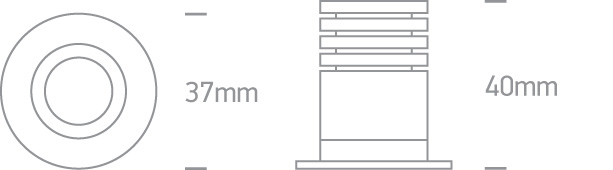

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Project Range Aluminium
Order Code
10102H/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
30mm
Diameter
40mm
Cutout Hole Diameter
30mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
2W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Lumileds
LED Number
1
Cable Length
100cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
100lm
Light Efficiency
50lm/W
CRI
85
Beam Angle
30°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
4,5cm
Box Weight
0.097kg
Pcs/Carton
100
Barcode
5291889055235
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
