02 Recessed Spots Fixed LED > The 3W Dark Light Range Aluminium
.jpg)
10103E/W/B/W

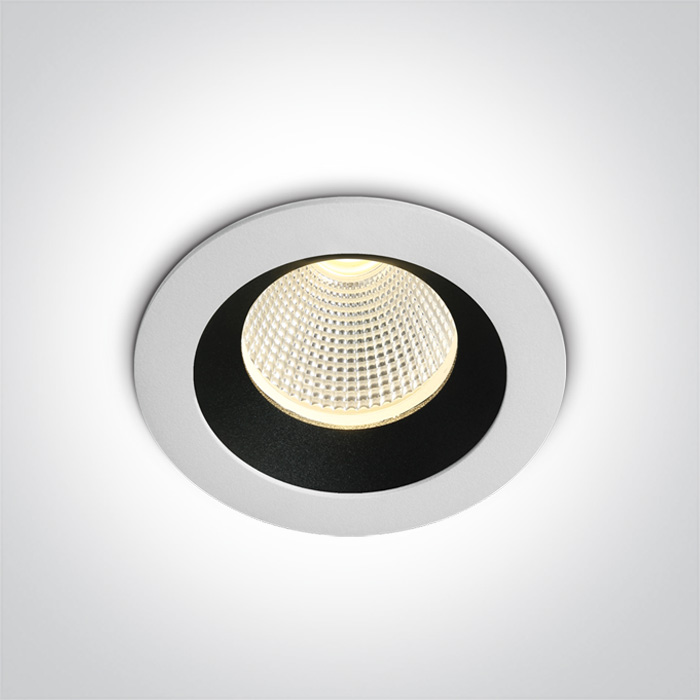

3W Recessed Dark Light LED spot IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 3W Dark Light Range Aluminium
Order Code
10103E/W/B/W
Colour
White-Black
Material
Aluminium
Shape
Circular
Height
52mm
Diameter
50mm
Cutout Hole Diameter
44mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8,7V
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm@3W
Light Efficiency
80lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.094kg
Pcs/Carton
50
Barcode
5291889071143
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
