06 Downlights Fixed LED > The Budget Downlight Range Aluminium
10103T/W/C

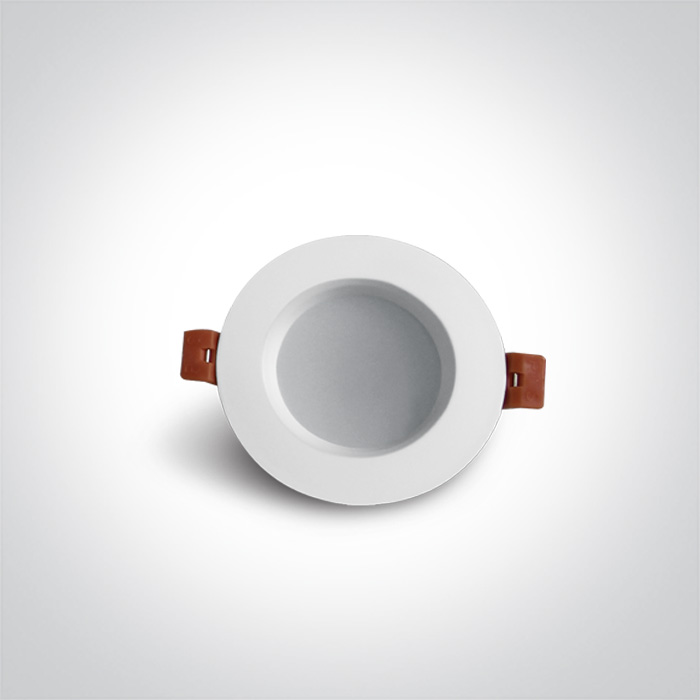

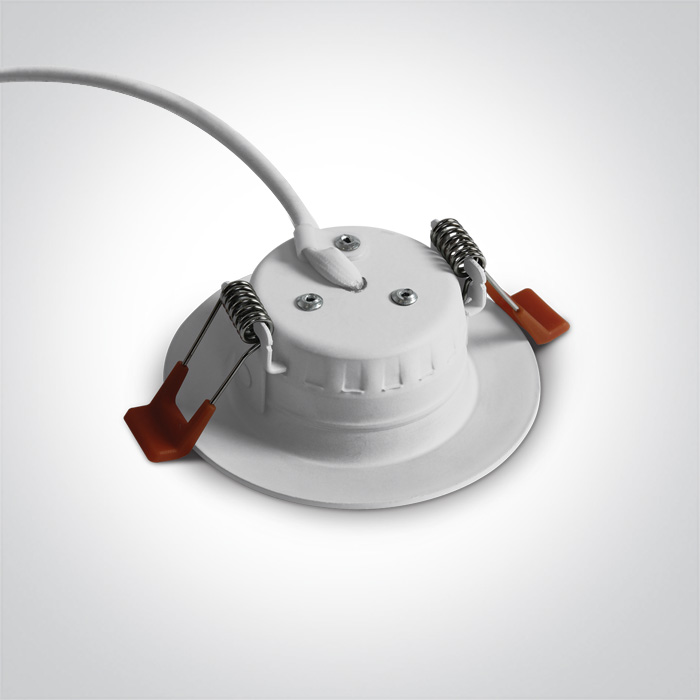

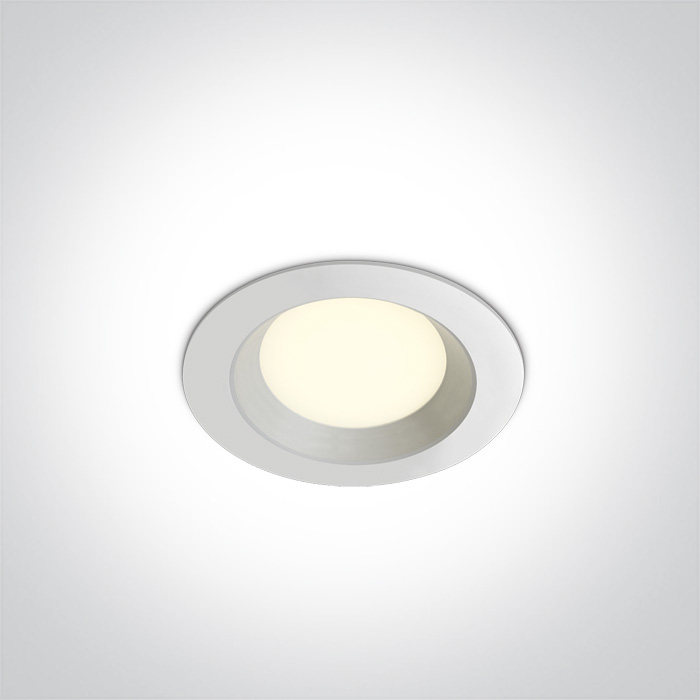

3W SMD LED recessed downlight, budget range, IP20.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Budget Downlight Range Aluminium
Order Code
10103T/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
35mm
Diameter
90mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
9V
Safety Class
Power (Watts)
2,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
6
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2-3W
Power Factor
0,5
Constant Current
Yes
Voltage Range
8-12V
Output
250mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
220lm
Light Efficiency
73,33lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
9,5cm
Box Width
9,5cm
Box Height
6cm
Box Weight
0.142kg
Pcs/Carton
100
Barcode
5291889045755
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
