ONE Light

    • 01 Recessed Spots Fixed > The Dual Ring Range Aluminium

    10105A1/W
    Gallery
    10105A1/W
    10105A1/W

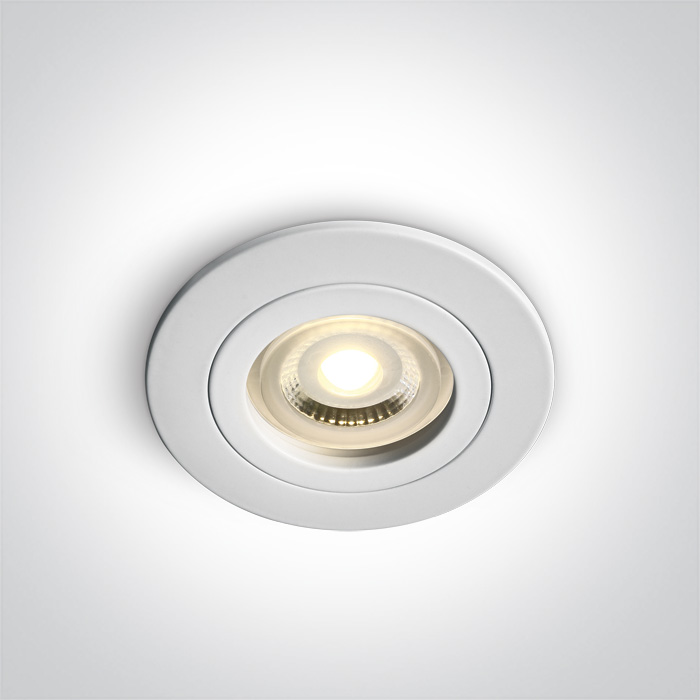

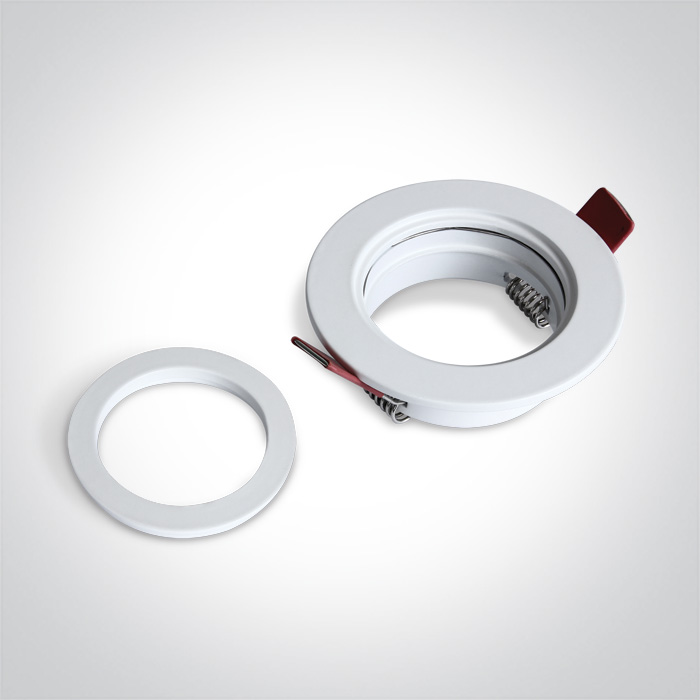

    Dual Ring Range Recessed MR16 spot with GU10 lampholder.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    IP
    Beam Angle
    CE

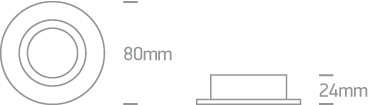

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    01 Recessed Spots Fixed
    Family
    The Dual Ring Range Aluminium
    Order Code
    10105A1/W
    Colour
    White
    Material
    Aluminium
    Shape
    Circular
    Height
    24mm
    Diameter
    80mm
    Cutout Hole Diameter
    68mm
    Recessed Ceiling
    Yes
    Depth Required
    120mm
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Power (Watts)
    10W
    IP Rating
    IP20
    Light Source
    Replaceable lamp
    Lamp Holder
    GU10
    Number of Lamps
    1
    Dimmable
    N/A
    Cable Length
    15cm
    F Mark

    Illumination Data

    +
    Illumination Diagram

    Packing Info

    +
    Box Length
    9cm
    Box Width
    9cm
    Box Height
    5cm
    Box Weight
    0.140kg
    Pcs/Carton
    100
    Barcode
    5291889048305
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    5 years
    Year in which the CE mark was affixed
    12
