01 Recessed Spots Fixed > The Mix & Match Range
10105H/BS

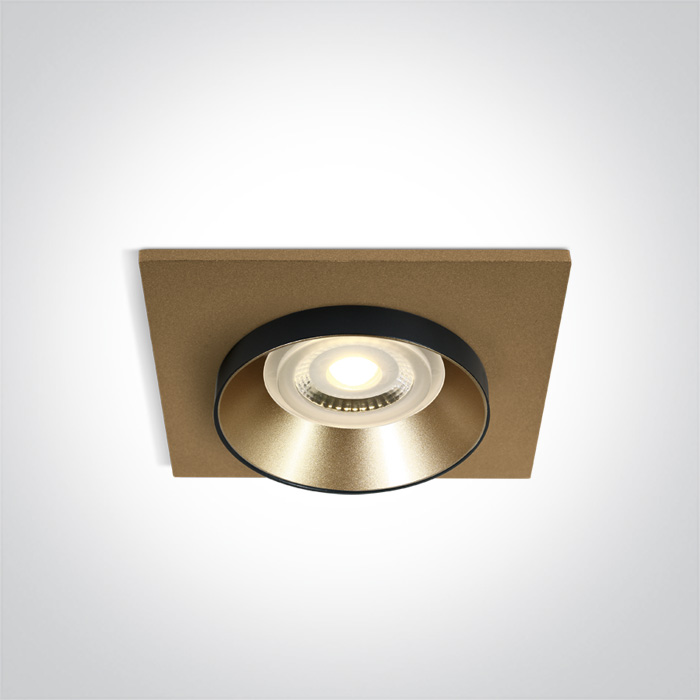

Dark Light Recessed MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Mix & Match Range
Order Code
10105H/BS
Colour
Brass Reflector
Material
Die Cast
Shape
Circular
Height
40mm
Diameter
71mm
Cutout Hole Diameter
64mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.184kg
Pcs/Carton
50
Barcode
5291889065128
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
