01 Recessed Spots Fixed > The IP65 Bathroom Range Aluminium
10105R1/AL

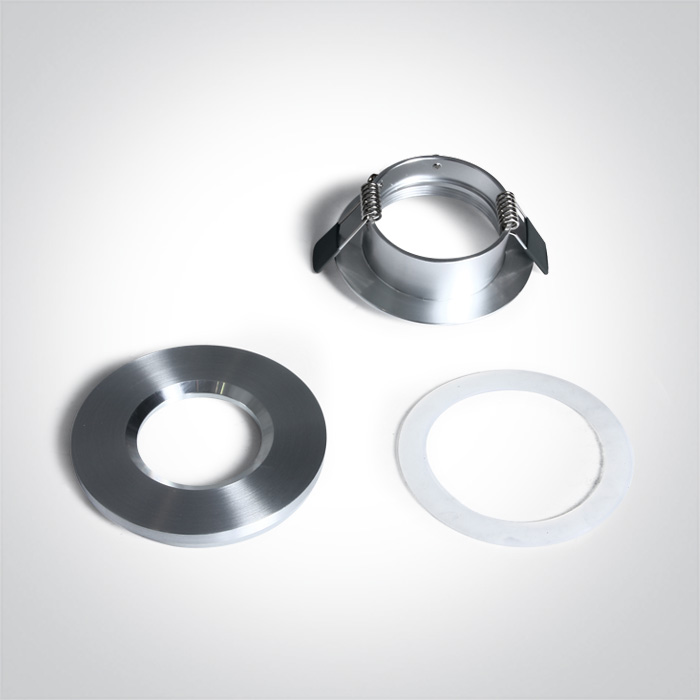

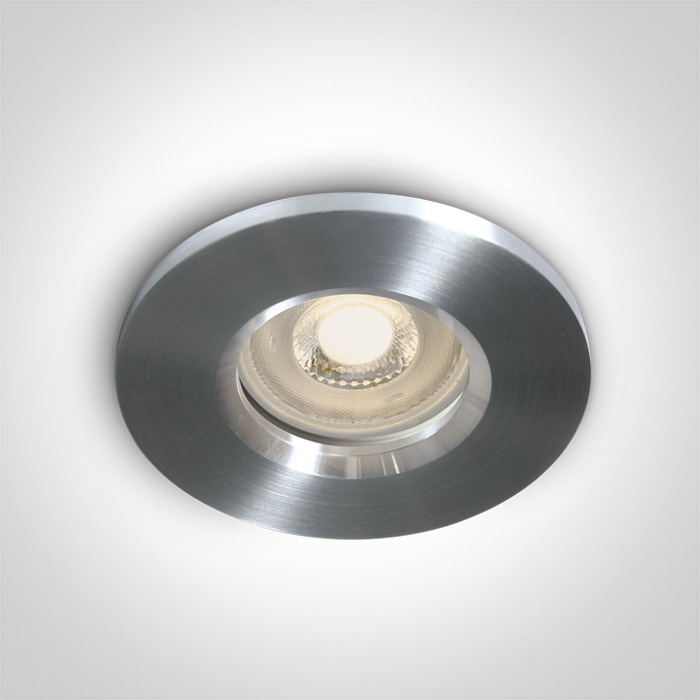

IP65 Bathroom Recessed MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The IP65 Bathroom Range Aluminium
Order Code
10105R1/AL
Colour
Aluminium
Material
Aluminium
Shape
Circular
Height
27mm
Diameter
84mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
5cm
Box Weight
0.207kg
Pcs/Carton
50
Barcode
5291889048404
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
2017
