01 Recessed Spots Fixed > The Trimless Chill Out Range Aluminium
10105TR/B

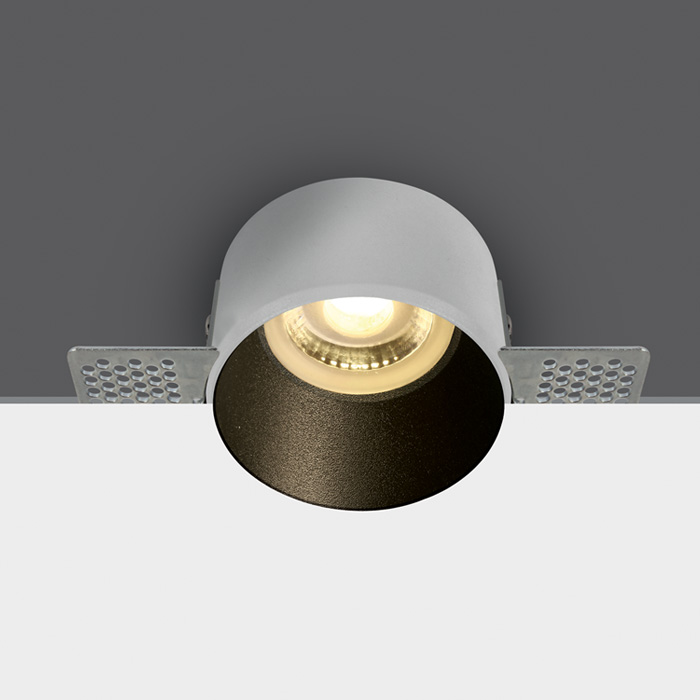

Trimless Dark Light Recessed MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Trimless Chill Out Range Aluminium
Order Code
10105TR/B
Colour
Black
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
60mm
Cutout Hole Diameter
70mm
Recessed trimmless ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.286kg
Pcs/Carton
60
Barcode
5291889052814
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
