02 Recessed Spots Fixed LED > The IP65 Range
10106V/B/W

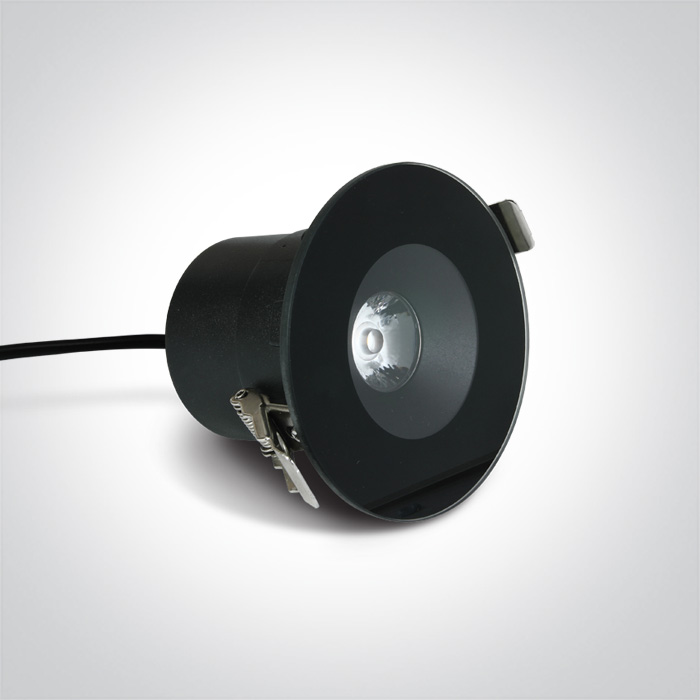

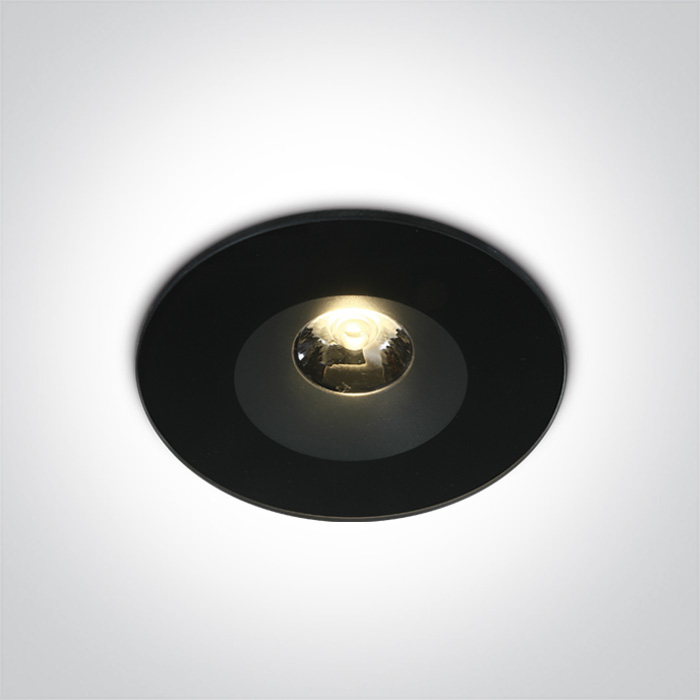

6W Recesed Spot fixed LED, IP65.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Range
Order Code
10106V/B/W
Colour
Black
Material
Die Cast + Glass
Shape
Circular
Height
81mm
Diameter
110mm
Cutout Hole Diameter
94mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,5
Constant Current
Yes
500mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
460lm
Light Efficiency
76,67lm/W
CRI
80
Beam Angle
25°
Illumination Diagram
Packing Info
Box Weight
0.725kg
Pcs/Carton
12
Barcode
5291889065937
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
