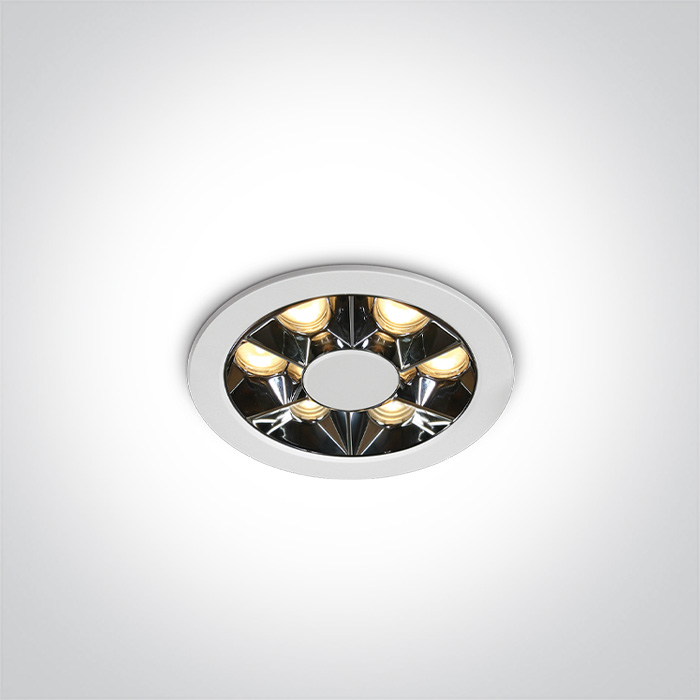

02 Recessed Spots Fixed LED > The Round Mirror Range
10106X/W/W
6W Recessed spot, IP20.
Complete with 150mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 150mA driver.
Complies with standard EN60598-1 and any other specific standards.

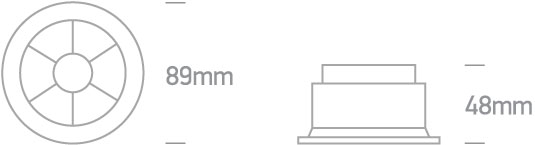

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Round Mirror Range
Order Code
10106X/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
48mm
Diameter
89mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
150mA
Voltage
36V
Safety Class
Power (Watts)
5,4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Sanan
LED Number
6
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-6,3W
Power Factor
0,5
Constant Current
Yes
150mA
28-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+60°C
Operating Temp
85°C
Illumination Data
Colour Temperature
3000K
Lumen Output
480lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.227kg
Pcs/Carton
40
Barcode
5291889074595
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
