02 Recessed Spots Fixed LED > The 7W Dark Light Range Die Cast
10107DC/W/W

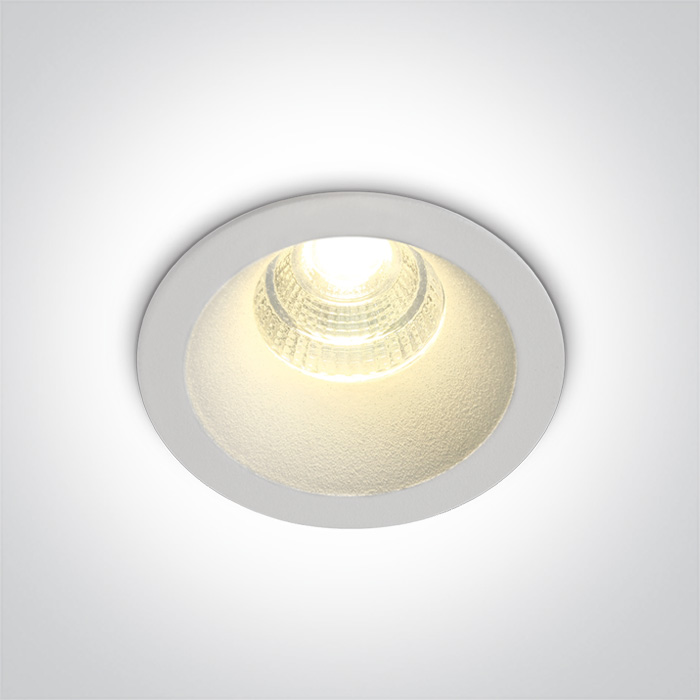

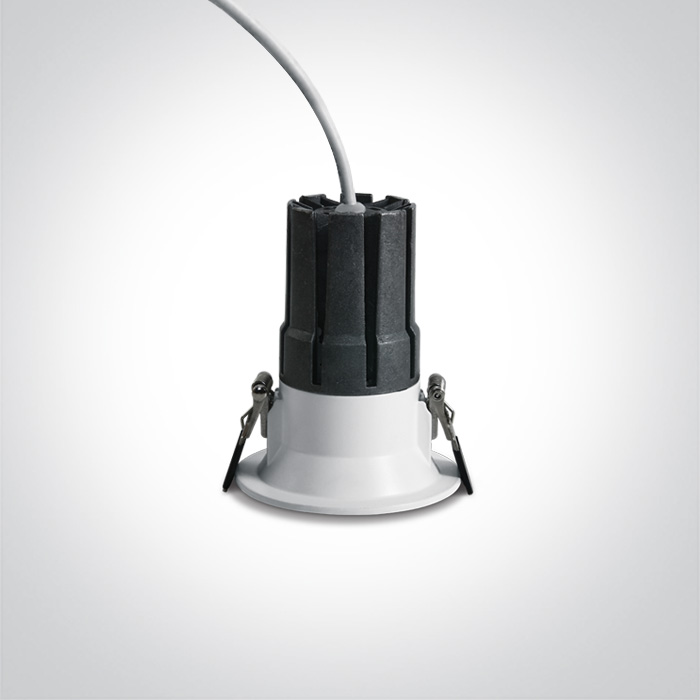

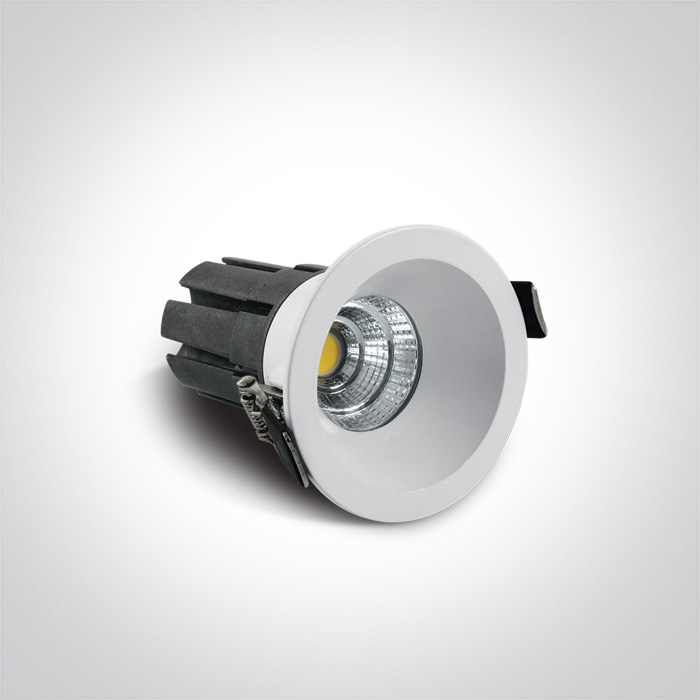

7W COB LED Dark Light spot with a beam angle of 50°. Ideal
for commercial and residential application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

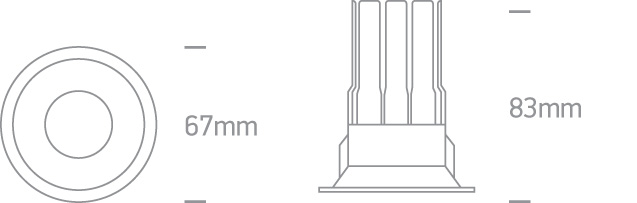

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 7W Dark Light Range Die Cast
Order Code
10107DC/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
83mm
Diameter
67mm
Cutout Hole Diameter
55mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
15cm
F Mark
Fitting
Input Type
Constant Current
Safety Class
Power (Watts)
6,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
1
Cable Length
0
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2W-7,2W
Power Factor
0,9
Constant Current
Yes
300mA
0
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
50º
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9cm
Box Width
7cm
Box Height
11cm
Box Weight
0.232kg
Pcs/Carton
50
Barcode
5291889052111
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
