02 Recessed Spots Fixed LED > The IP65 Project Range Aluminium
10107H/W/C

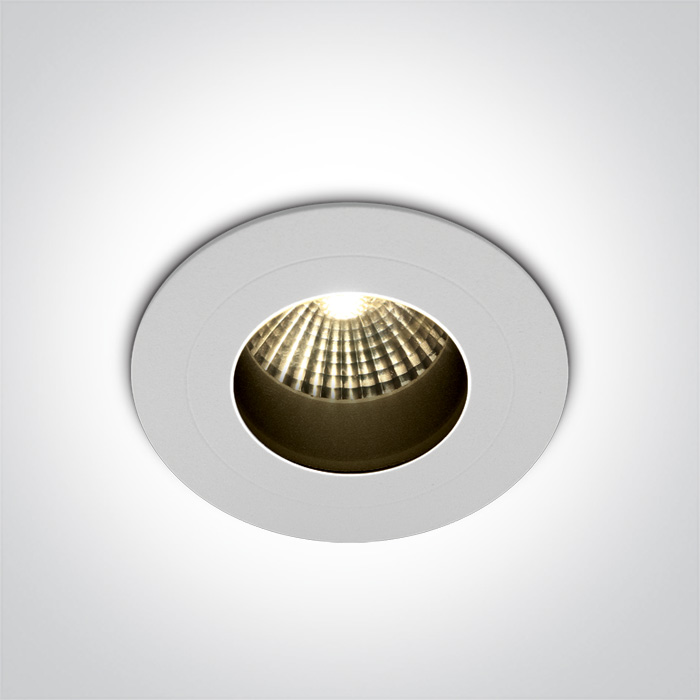

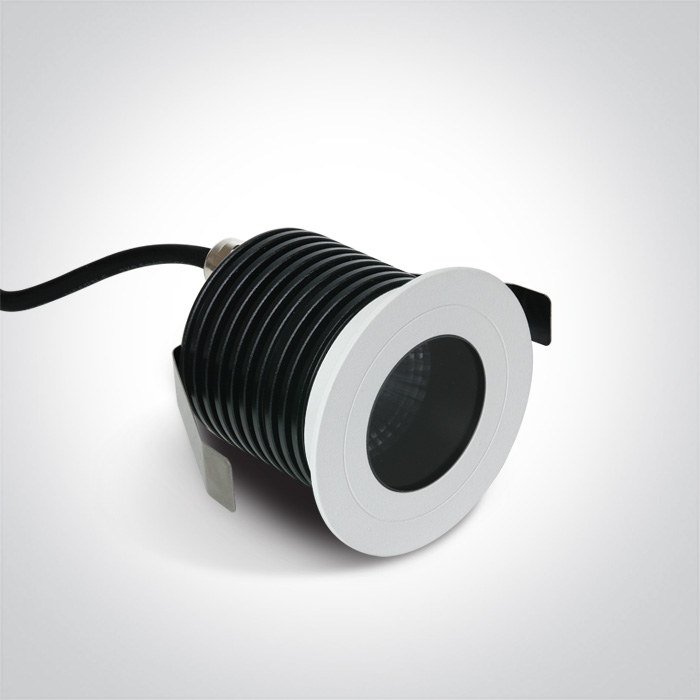

IP65 6,5W COB LED Dark Light recessed spot ideal for bathroom installation.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Project Range Aluminium
Order Code
10107H/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
75mm
Diameter
70mm
Cutout Hole Diameter
60mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
1
Cable Length
40cm
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
530lm
Light Efficiency
81lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
8,5cm
Box Weight
0.280kg
Pcs/Carton
50
Barcode
5291889045175
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
