02 Recessed Spots Fixed LED > The 6,5W COB IP65 Range
10107WP/B/W

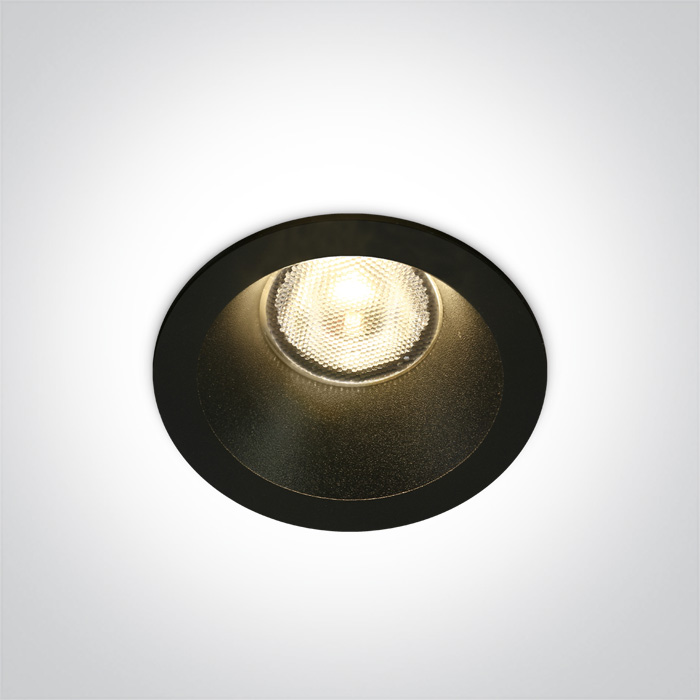

6,5W COB LED recessed spot suitable for indoor and outdoor
installation, IP65.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 6,5W COB IP65 Range
Order Code
10107WP/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
70mm
Diameter
67mm
Cutout Hole Diameter
56mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
7,5cm
Box Width
7,5cm
Box Height
9,5cm
Box Weight
0.210kg
Pcs/Carton
50
Barcode
5291889053422
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
