02 Recessed Spots Fixed LED > The Retro Dark Light Range
10107Z/B/W
7W Recessed Dark Light LED spot IP20.

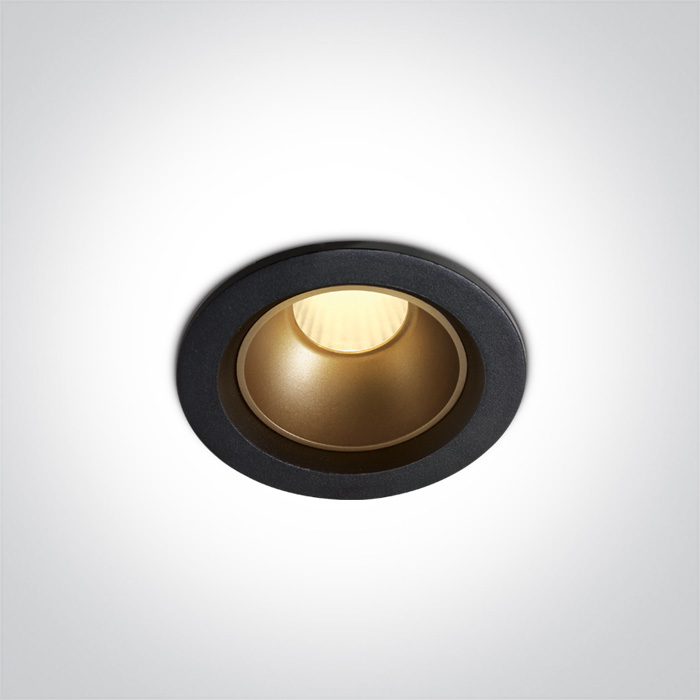

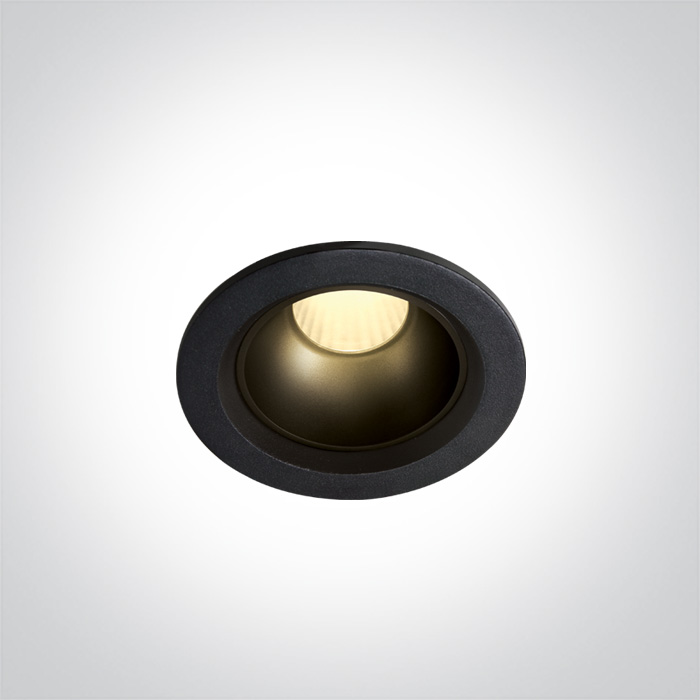

Supplied with Black & Brass reflectors.
Complete with 160mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with 160mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Retro Dark Light Range
Order Code
10107Z/B/W
Colour
Black
Material
Die Cast + Plastic
Shape
Circular
Height
58mm
Diameter
75mm
Cutout Hole Diameter
65mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
160mA
Voltage
39V
Safety Class
Power (Watts)
6,2W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4-6,7W
Power Factor
0,5
Constant Current
Yes
Voltage Range
24-42V
Output
160mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
10cm
Box Height
6,5cm
Box Weight
0.232kg
Pcs/Carton
40
Barcode
5291889058991
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
