02 Recessed Spots Fixed LED > The 8W Range
10108D/W/W

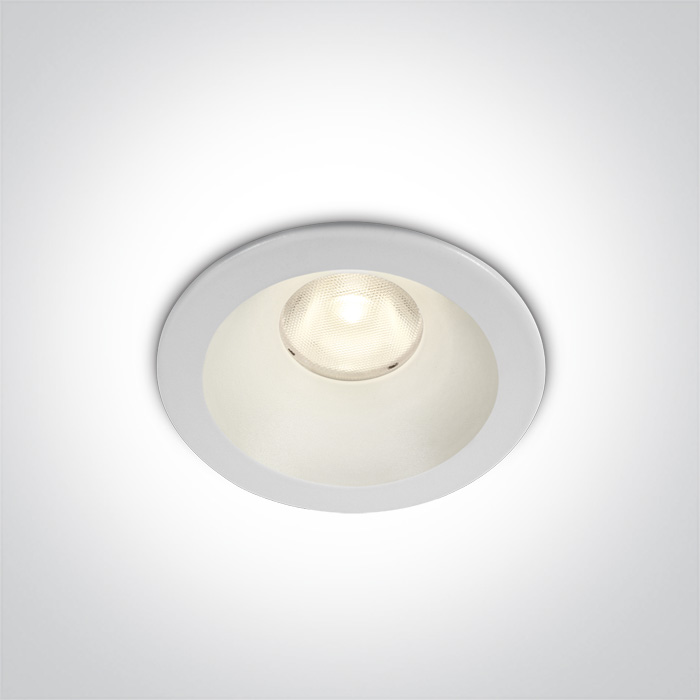

8W COB LED Dark light recessed Spot.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

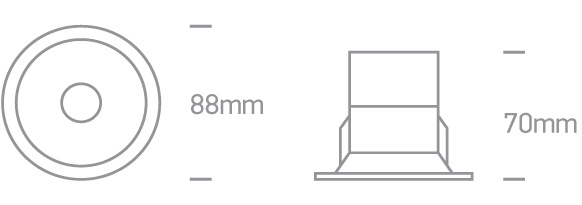

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 8W Range
Order Code
10108D/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
70mm
Diameter
88mm
Cutout Hole Diameter
73mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
24V
Safety Class
Power (Watts)
7,2W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,75-15,2W
Power Factor
0,9
Constant Current
Yes
300mA
14-24
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10,5cm
Box Width
10,5cm
Box Height
8,5cm
Box Weight
0.314kg
Pcs/Carton
50
Barcode
5291889063506
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
