02 Recessed Spots Fixed LED > The 8W Range
10108R/W/W

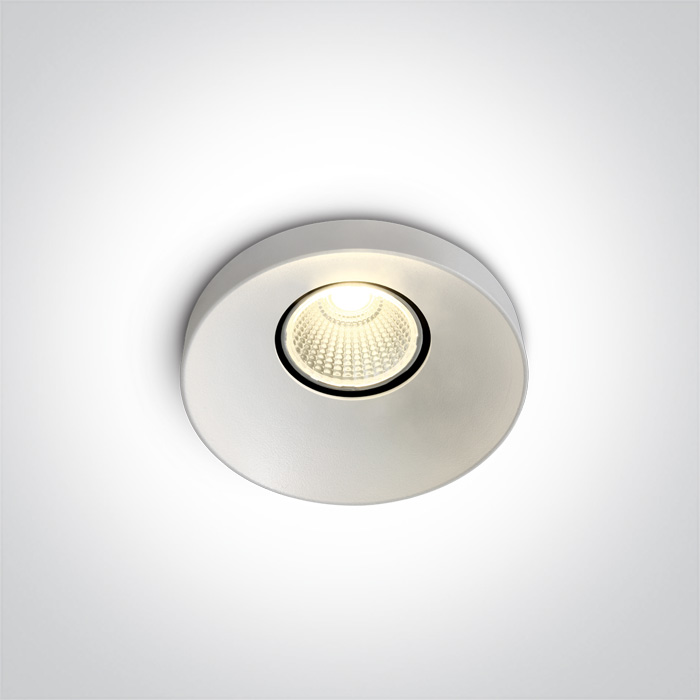

8W COB LED recessed Spot.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 8W Range
Order Code
10108R/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
50mm
Diameter
81mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
17,1V
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5-8,4W
Power Factor
0,9
Constant Current
Yes
350mA
14-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
750lm
Light Efficiency
93,75lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Weight
0.264kg
Pcs/Carton
50
Barcode
5291889066095
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
